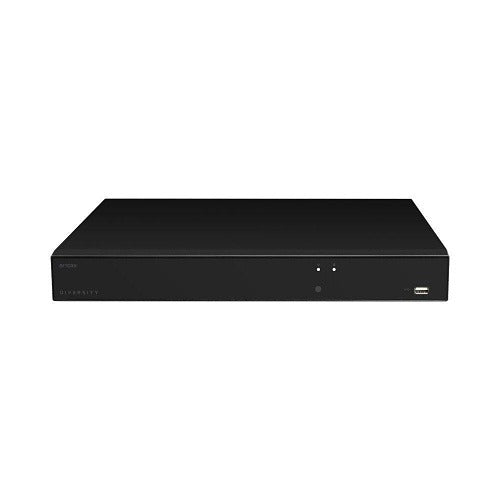

Avycon AVR-NSV16P16-10T 16-channel Poe Nvr 10TB

Product Description

The AVYCON AVR-NSV16P16-10T is a 16-channel Power over Ethernet network video recorder built for professional IP camera surveillance installations. It ships with 10TB of onboard storage and integrates AI-driven analytics including face detection, making it suited for sites where intelligent event filtering and search are required. The unit is NDAA-compliant, meeting federal procurement requirements for government and public-sector deployments. Security integrators and low-voltage technicians are the primary installers for this class of recorder.

This NVR is designed for mid-size commercial and institutional surveillance systems where a self-contained PoE switch and recorder in a single chassis reduces rack space and cabling complexity. The 16 built-in PoE ports allow direct connection of IP cameras without a separate network switch. AI face detection enables operators to search recorded footage by facial event rather than scrubbing timelines manually. NDAA compliance makes it appropriate for federal facilities, schools, and other publicly funded projects subject to supply-chain security requirements.

Key Features

• 16 built-in PoE ports eliminate the need for a separate PoE switch for camera power and data
• 10TB factory-installed hard drive provides substantial onboard recording capacity
• AI face detection analytics enable event-based search and alerting
• NDAA-compliant design meets federal and public-sector procurement standards
• Supports up to 16 simultaneous IP camera channels

Compatibility

Designed as an OEM-style network video recorder compatible with standard ONVIF-conformant IP cameras. Refer to the AVYCON camera compatibility list for confirmed supported models and maximum resolution profiles.

Installation Notes

Installation is performed by licensed low-voltage or security systems technicians. Power down all connected cameras and disconnect network feeds before servicing the unit or swapping storage drives. Follow NEC Article 725 guidelines for low-voltage cabling runs and observe local AHJ requirements for equipment room ventilation and rack mounting. Do not exceed the total PoE power budget across all 16 ports simultaneously.
