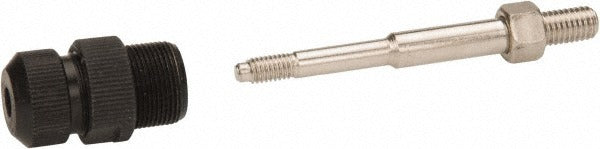

Avk AA483-518N Thread Adapter Kit 5/16-18 3 Piece

Product Description

The AVK AA483-518N is a 3-piece thread adapter kit designed for use with the AVK manual insert tool. It converts the tool to accept 5/16-18 threaded inserts, allowing technicians and assembly professionals to install the correct insert size without switching to a separate tool system. The kit weighs 0.25 pounds and features a compact profile, with individual components measuring approximately 3.7 inches in height and 0.5 inches in width and length. This adapter kit is a required accessory component and must be paired with either the AA480N or the AA510N handle assembly to form a complete, functional system.

This kit is intended for use with the AVK AA480 manual insert tool in professional assembly, maintenance, and repair applications. It is suited for environments where threaded inserts are installed by hand without pneumatic or hydraulic tooling — common in light fabrication, field service, and maintenance operations. The 5/16-18 thread size is a standard coarse-thread specification frequently encountered in industrial and mechanical assembly work. The adapter kit allows a single base tool to serve multiple thread sizes, reducing tooling costs and inventory requirements.

Key Features

• 3-piece kit adapts the AVK AA480 manual insert tool to 5/16-18 thread size
• Must be purchased with AA480N or AA510N to create a complete insert installation system
• Compact component dimensions: approximately 3.7 inches tall, 0.5 inches wide and long
• Lightweight at 0.25 pounds, suitable for portable field use
• Designed for manual (non-powered) insert tool applications

Compatibility

Designed for use with the AVK AA480 manual insert tool. Requires the AA480N or AA510N handle assembly to form a complete operating system. This adapter kit alone does not constitute a functional installation tool.

Installation Notes

Assembly and maintenance technicians should verify that the correct base tool handle (AA480N or AA510N) is on hand before attempting insert installation. Confirm thread size compatibility between the adapter, the insert, and the receiving workpiece before beginning. Follow the tool manufacturer's assembly sequence when attaching adapter components to the base handle. Inspect adapter threads and components for wear or damage before each use.
