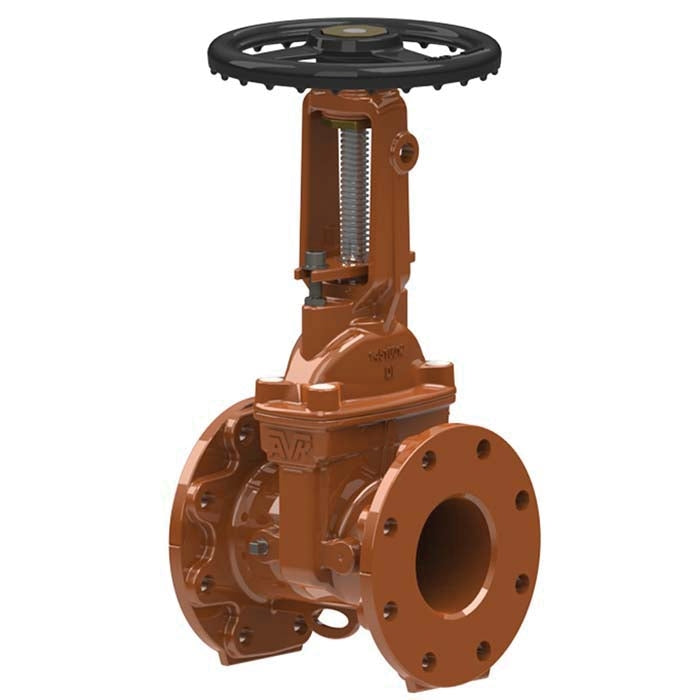

AVK 145-100-FFO Gate Valve Class 150 6 in Fusion Bonded Epoxy Coated 145-150-4602096129

Product Description

The AVK 145-100-FFO is a Class 150 Gate Valve made from ductile iron. It has a six-inch flanged connection and features fusion bonded epoxy coating for enhanced durability. This valve is designed for fire protection applications and meets industry standards.

• Outside stem and yoke design
• Resilient seat for better sealing
• Cold-rolled threading process to prevent stem issues

Product Highlights

This valve offers a slim wedge design that reduces operating torque and increases efficiency. The epoxy coating provides long-lasting protection against corrosion, further extending the valve's life.

Product Information

Standard Information

• Brand: AVK
• Manufacturer: American AVK

Technical Specifications

• Connection Size: 6 in
• Connection Type: Flanged
• Dimension: 10-1/2 in L
• Finish: Fusion Bonded Epoxy Coated
• Item Name: Gate Valve
• Material Specifications: ASTM A276, ASTM A536
• Material: Ductile Iron
• Operator Type: Ductile Iron Handwheel
• Pressure Class: Class 150
• Pressure Rating: 250 psi
• Series: 145
• Stem Material: 304 Stainless Steel
• Type: OS and Y
