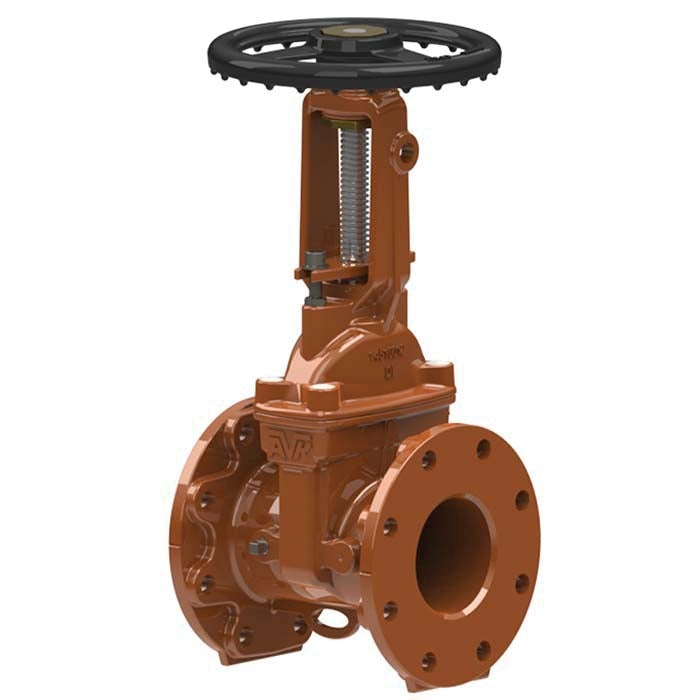

AVK 145-080-FFO Gate Valve Class 150 Fusion Bonded Epoxy Coated 3 in Flanged

Product Description

The AVK 145-080-FFO is a ductile iron OS and Y gate valve designed for fire protection applications. This valve features a fusion bonded epoxy coat for corrosion resistance and has a connection size of three inches with a flanged type. It is suitable for high-pressure environments and provides reliable performance in critical conditions.

• Outside stem and yoke design
• Electrostatically applied epoxy for long-lasting durability
• 2-year warranty coverage

Product Highlights

This valve utilizes advanced features like a resilient seat and a patent pending Slim Wedge design to reduce operating torque.

Product Information

Standard Information

• Brand: AVK
• Manufacturer: American AVK
• Part Number: 145-080-4602096120

Technical Specifications

• Connection Size: 3 in
• Connection Type: Flanged
• Dimension: 8 in L
• Finish: Fusion Bonded Epoxy Coated
• Item Name: Gate Valve
• Material Specifications: ASTM A276, ASTM A536
• Material: Ductile Iron
• Operator Type: Ductile Iron Handwheel
• Pressure Class: Class 150
• Pressure Rating: 250 psi
• Series: 145
• Stem Material: 304 Stainless Steel
• Type: OS and Y
