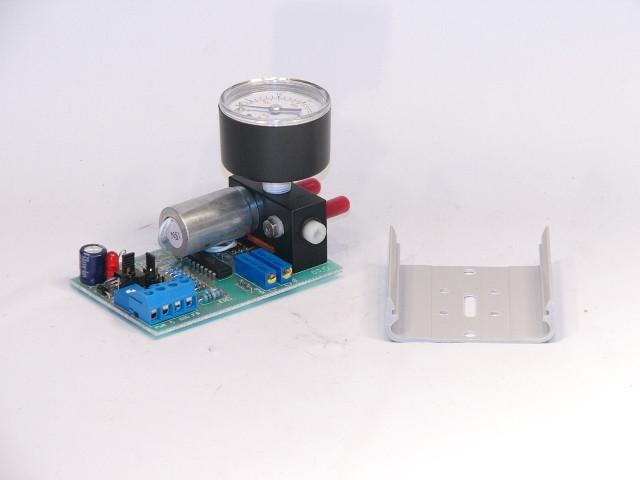

Automation Components Inc PXP1.3G Analog to 0/15# Output Gauge

Product Description

The Automation Components Inc PXP1.3G is a state-of-the-art analog to pneumatic transducer that precisely converts electrical input signals into proportional pneumatic outputs. Ideal for various HVAC applications, this device ensures accurate pressure modulation in response to signal changes.

• Capable of handling input ranges from 0 to 15 VDC and 0-20 mA.
• Provides a pneumatic output range of 0 to 15 psig.
• Includes feedback through a 0-5 VDC signal corresponding linearly with pressure changes.

Product Highlights

Equipped with a robust control valve system, the PXP1.3G automatically regulates airflow and pressure to maintain the desired setpoint, dictated by its advanced sensor inputs. It is engineered for reliability in power failure scenarios, featuring bleed-orifice continuity that ensures zero pressure in the absence of power. The unit can be integrated with a three-way solenoid valve to facilitate default control systems during outages.

Product Information

Standard Information

• Brand: Automation Components Inc.
• MPN: PXP1.3G

Technical Specifications

• Input Signal Range: 0-5, 0-10, 0-15 VDC and 0-20 mA
• Output Pressure: 0 to 15 psig
• Feedback Signal: 0-5 VDC
• Operational Airflow: 14 to 73 standard cubic inches per minute
