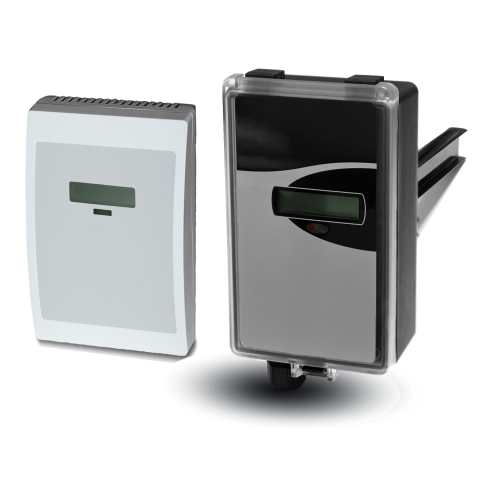

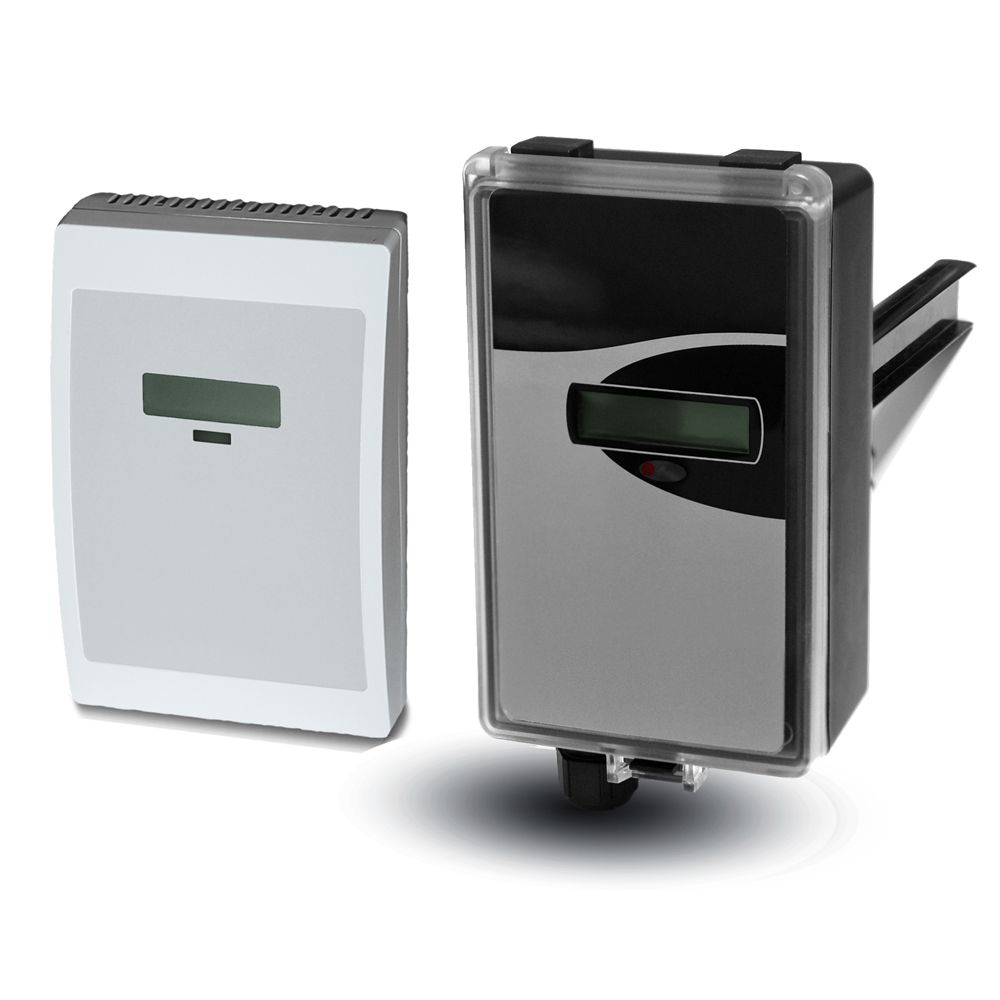

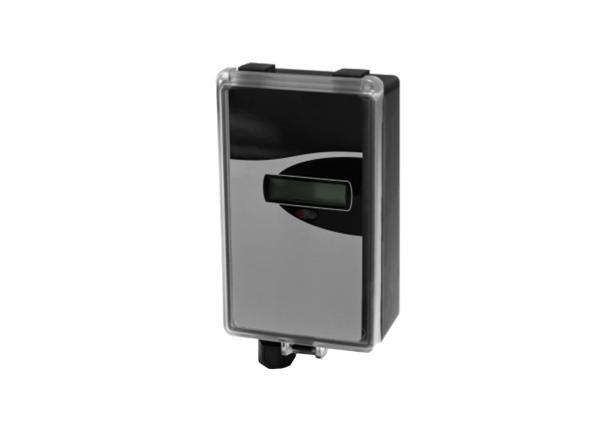

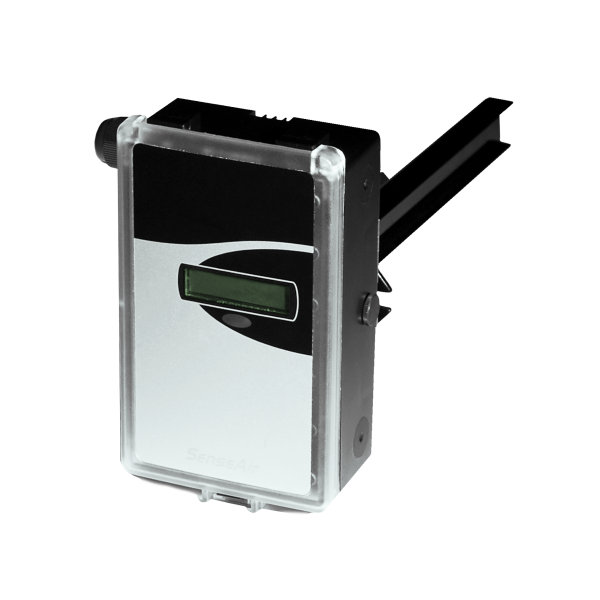

AUTOMATION COMPONENTS-ACI A/ESENSE-D-LCD Carbon Dioxide Duct Sensor

Product Description

The AUTOMATION COMPONENTS-ACI A/ESENSE-D-LCD is a precise duct-mounted carbon dioxide sensor. This unit measures CO2 concentration levels in parts per million. It has an integrated LCD that displays the current CO2 readings clearly. The device outputs 0-10VDC and 4-20mA signal for easy integration into existing systems. It utilizes a single beam non-dispersive infrared sensing method with automatic baseline correction, allowing it to adapt to environmental changes.

• Duct mountable carbon dioxide sensor for easy installation.
• LCD screen for real-time carbon dioxide level display.
• Compatible with 0-10VDC and 4-20mA output signals for versatile applications.

Product Highlights

This sensor is designed for HVAC systems, ensuring optimal air quality in commercial and residential settings.

Product Information

Standard Information

• Brand: ACI (Automation Components Inc)
• Sensing Range: 0 to 2000 ppm

Technical Specifications

• Supply Voltage: 24 VAC/VDC ±20%; 50/60Hz
• Power Consumption: Less than 1W
• Operating Temperature Range: 32°F to 122°F (0°C to 50°C)
• Operating RH Range: 0 to 95% RH Non-condensing
• Accuracy: ±30 ppm and ±3% of reading
• Response Time: Less than 10 seconds
• Duct Dimensions: Height 5.95 inches, Width 3.33 inches, Depth 1.85 inches
• Product Weight: 0.812 lbs (0.368 kg)
