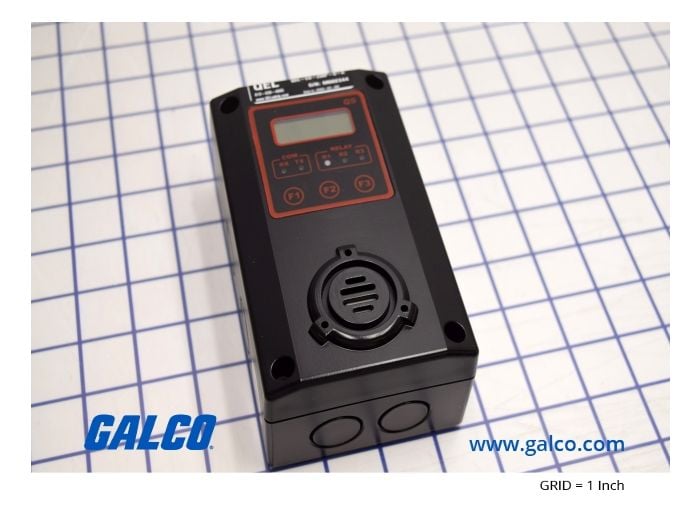

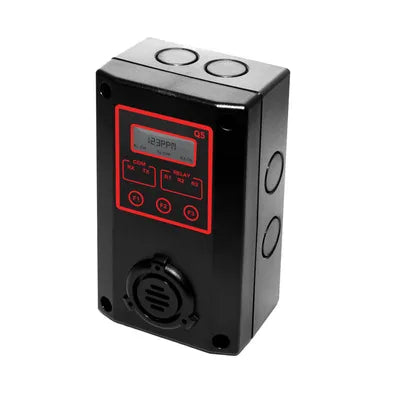

AUTOMATION COMPONENTS-ACI 141036 Carbon Monoxide Sensor 0-250 ppm

Product Description

The AUTOMATION COMPONENTS-ACI 141036 is a carbon monoxide sensor that measures CO levels from zero to two hundred fifty parts per million (ppm). This sensor is built to withstand harsh conditions with its NEMA four X enclosure. It includes three single pole double throw (SPDT) relays for control options or alarms. Additionally, it provides multiple output formats: four to twenty milliamps, two to ten volts, or Modbus RTU, making it versatile for various applications.

• Measures carbon monoxide concentration from 0-250 ppm
• Includes 3 SPDT relays for control or alarm functions
• Offers 4-20mA, 2-10V, and Modbus RTU output options

Product Highlights

This sensor is ideal for gas detection in indoor settings. It ensures reliable monitoring of carbon monoxide levels to maintain safety.

Product Information

Standard Information

• Manufacturer Part Number: 141036
• Brand: ACI

Technical Specifications

• Product Series: Q5
• Type: Carbon Monoxide
• Application: Gas, Indoor
• Input Voltage: 15-24 VAC, 18-30 VDC
• Output: 1-5 VDC, 2-10 VDC, 4-20 mA, Modbus, RS-485, SPDT
• Humidity Range: 5-95 % RH
• Operating Temperature: -40-158 °F
• Display: LCD
• Approvals: CSA, UL
• Net Weight: 0.65 lbs
• Gross Weight: 0.985 lbs
• Origin: U.S.A.
