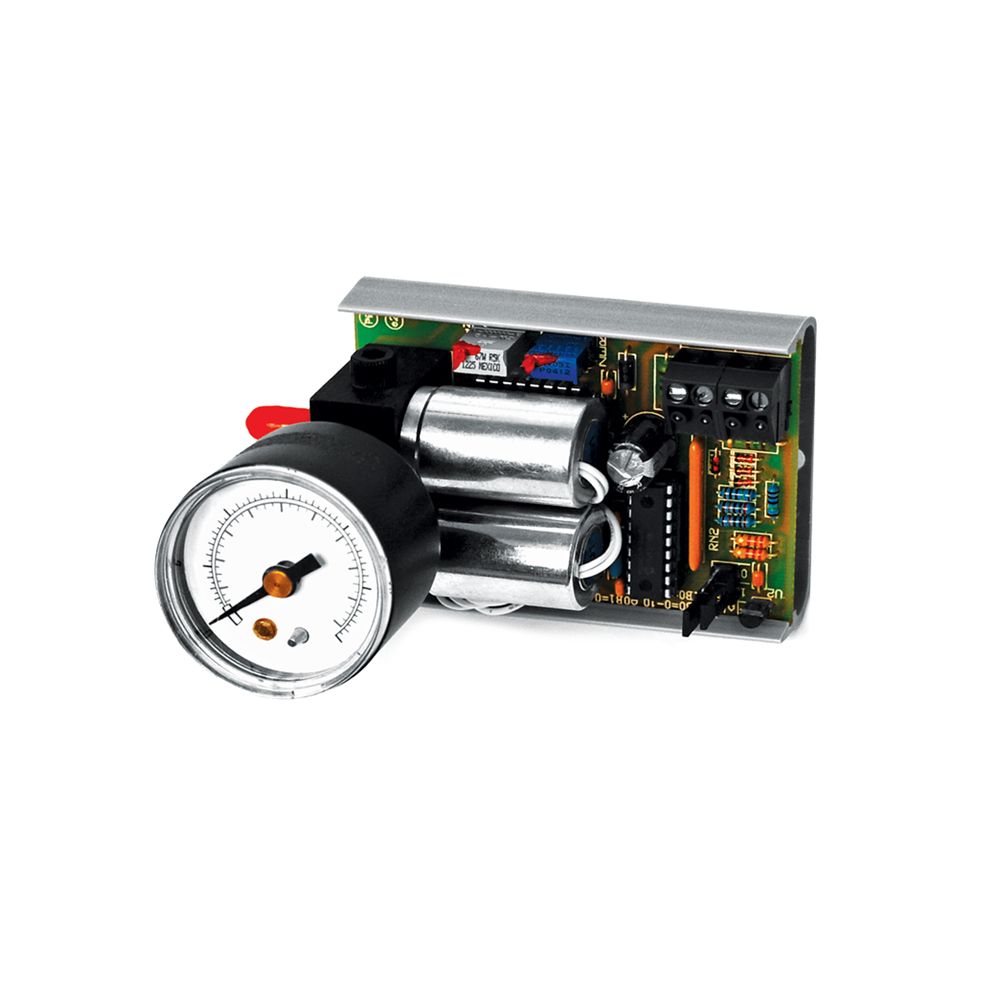

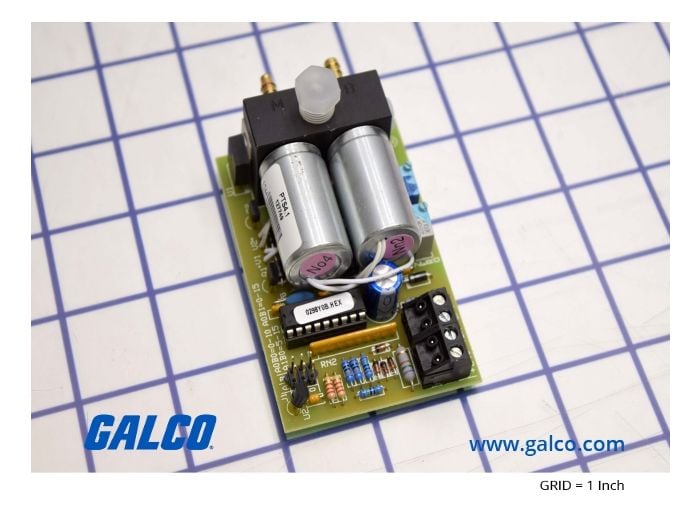

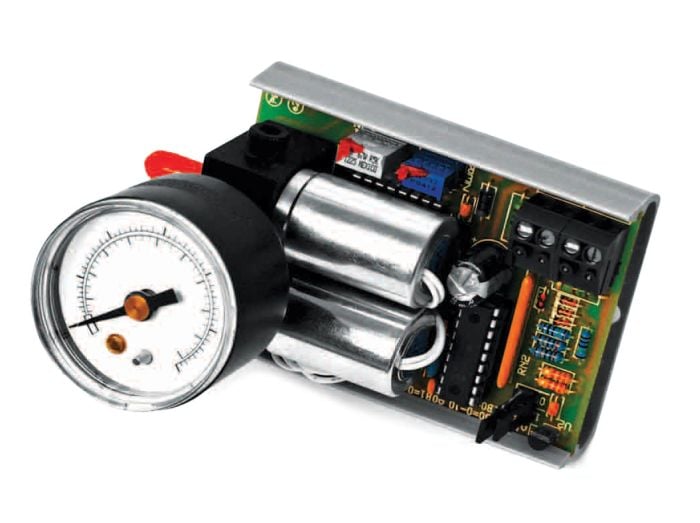

AUTOMATION COMPONENTS-ACI 127749 Floating Point to Pneumatic Converter

Product Description

The AUTOMATION COMPONENTS-ACI 127749 is a floating point to pneumatic converter designed for various pneumatic applications. It includes a dual valve and is essential for maintaining branch pressure effectively.

• Floating point input with a rate of change of ninety seconds
• Pressure output range from zero to fifteen PSI
• Ideal for pneumatic damper control and valve actuation

Product Highlights

This converter is suitable for applications like compressor staging and controlling any pneumatic actuator electrically.

Product Information

Standard Information

• Manufacturer: ACI-Automation Components
• Manufacturer Part Number: 127749

Technical Specifications

• Supply Voltage: twenty-four VAC +/- ten percent at terminals
• Supply Current: three hundred fifty mAAC, two hundred mADC maximum
• Digital Input Signal Source: two relay contact closures, transistors or TRIACs
• Rate of Change: ninety seconds
• Air Supply Pressure: twenty-five psig maximum, twenty psig minimum
• Output Pressure Range: jumper selectable from zero to ten psig or five to fifteen psig
• Accuracy: two percent at room temperature
• Operating Temperature Range: thirty-five to one hundred twenty degrees Fahrenheit
