Automation Components-Aci 121352 a/an-d-12 inches-pb 10,000 Ohm Thermistor Duct 12 inches

Product Description

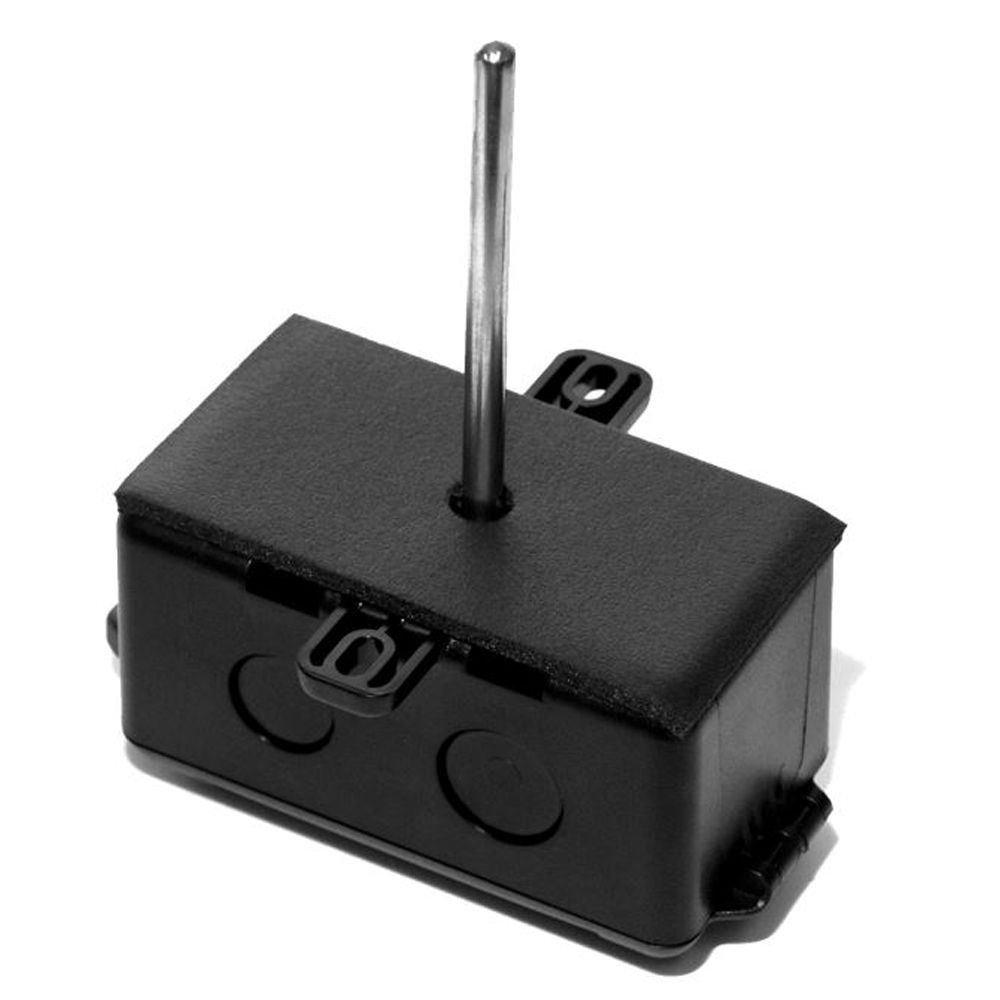

The AUTOMATION COMPONENTS-ACI 121352 is a 10,000 Ohm Thermistor (Type III) designed for duct applications, featuring a 12" probe and a plastic enclosure. ACI duct temperature sensors are designed for HVAC, Building Automation, and light industrial systems. Specific applications include: zone control, air handling units, and temperature monitoring.

• Stainless steel probe with two, 22 AWG Etched Teflon colored lead wires.
• Manufactured using ACI's proved double encapsulation process.
• Includes an insulation pad for sealing your duct and dampening vibration.

Product Highlights

The ACI Thermistor Duct Series is designed for smaller duct applications. The sensor length should be determined by the width or diameter of your duct such that the tip of the probe reaches the approximate center of the duct.

Product Information

Standard Information

• Brand: AUTOMATION COMPONENTS-ACI
• Manufacturer Part Number: 121352
• Country of Origin: U.S.A.

Technical Specifications

• Brand: ACI (Automation Components Inc)
• Weight: 2.000000
• Manufacturer Part Number: 121352
• Manufacturer: ACI-Automation Components
• Product Series: Thermistor Duct
• Family Series: ACI-Automation Components HVAC Sensors, Thermistor Duct Series
• Description: Duct 12in., Pb
• Application: Duct
• Output: 10 kOhm
• Humidity Range: 10-95% RH
• Operating Temperature: -40-302 °F
• Probe Length: 1 '
• Function: Temperature
• Display: No Display
• Override: No
• Set Point: No
• Approvals: CE, WEEE
• Net Weight: 0.245 lbs
• Gross Weight: 0.28 lbs
• SKU: 121352
• BRAND: ACI
• ORIGIN: U.S.A.
