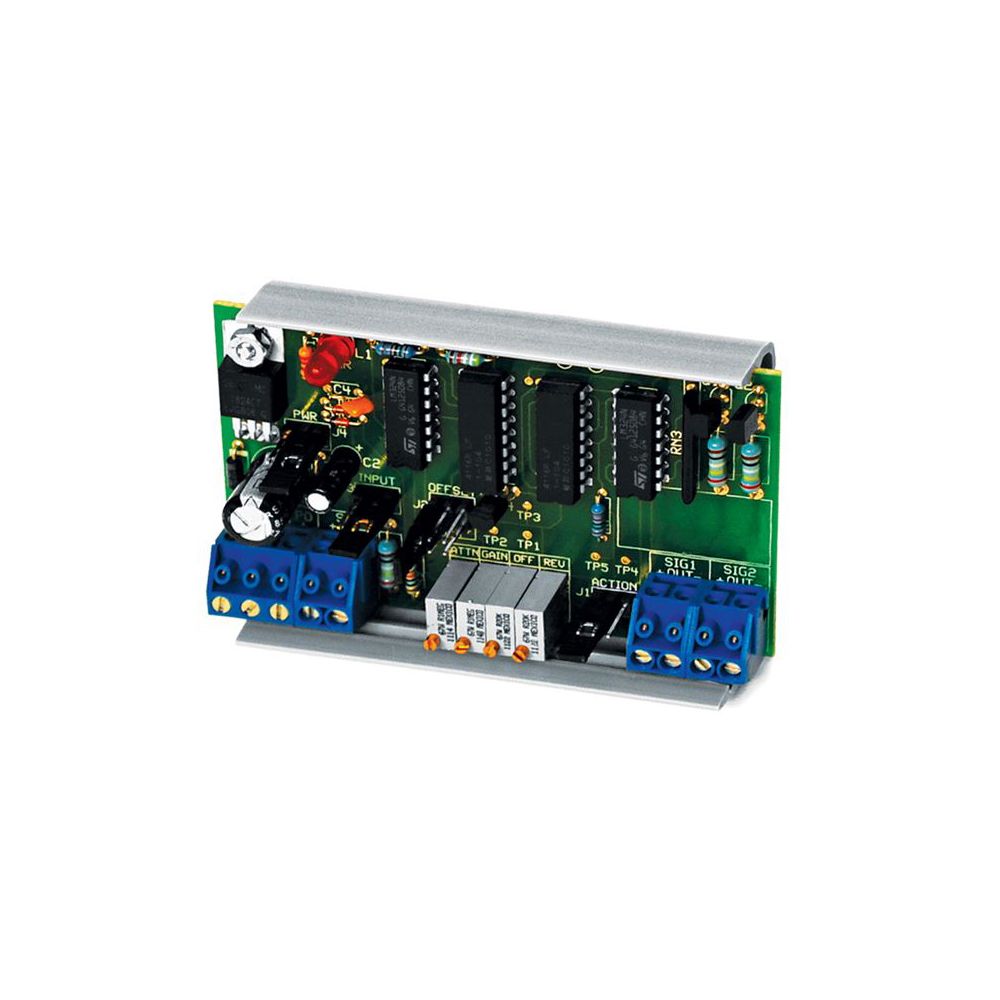

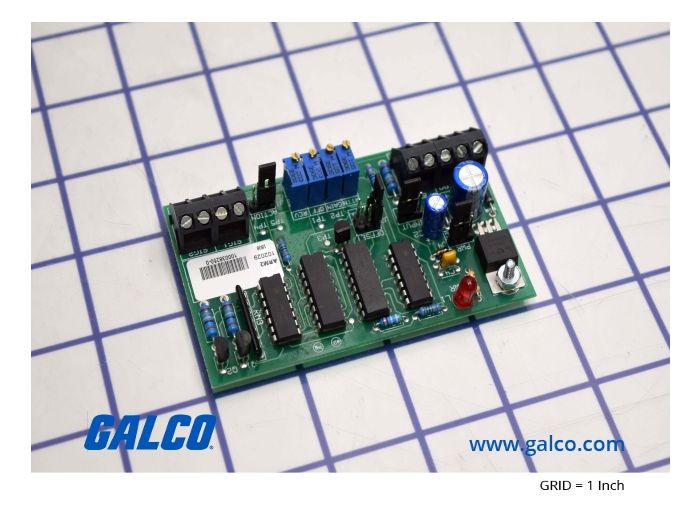

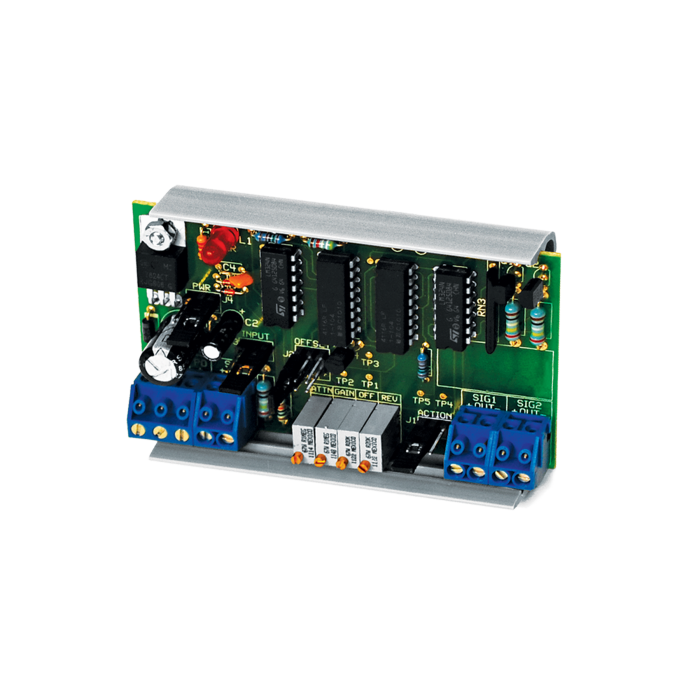

Automation Components-ACI 102029 Analog Input Dual Analog Output Splitter

Product Description

The Automation Components-ACI 102029 is an analog rescaling module designed to accept a single analog input signal and split it into two non-isolated DC current outputs. This module is suitable for voltage, current, or resistance inputs, making it versatile for various applications. It features adjustable gain and offset, allowing for tailored output adjustments. Additionally, it can attenuate signals and includes a regulated power supply output that can be used to power sensors.

• Accepts analog voltage, current, or resistance input signals.
• Provides two identical non-isolated DC current outputs.
• Features adjustable gain, offset, and signal attenuation.

Product Highlights

Reliable signal splitting and adjustment capabilities for enhanced system performance.

Product Information

Standard Information

• Brand: Automation Components-ACI
• Manufacturer Part Number: 102029

Technical Specifications

• Supply Voltage: 22.8 to 30 VDC, 21.6 to 26.4 VAC
• Supply Current: 100 mA maximum
• Input Voltage Signal Range: 0-35 VDC @ 1,000,000Ω
• Input Current Signal Range: 0 to 44 mA @ 250Ω
• Input Resistance Signal Range: 0 to 500,000Ω
• Adjustable Output Current Signal Ranges: Gain 1 to 20 times
• Output Signal Attenuation: 0 to 100%
• Product Dimensions: 3.69 x 2.17 x 1.00 inches
