White-Rodgers 30A46-5 Plug-in Type Mercury Flame Sensor 48 inches Element replaces 30a46-4

Product Description

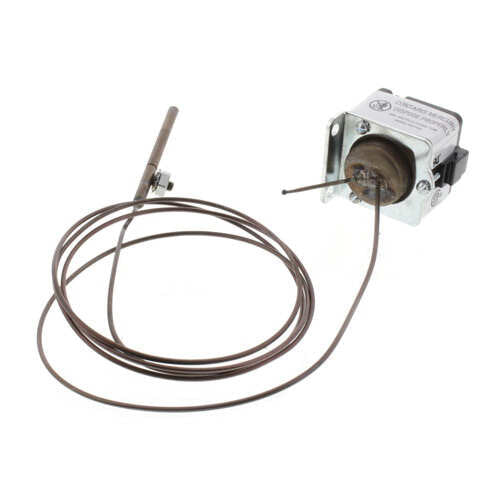

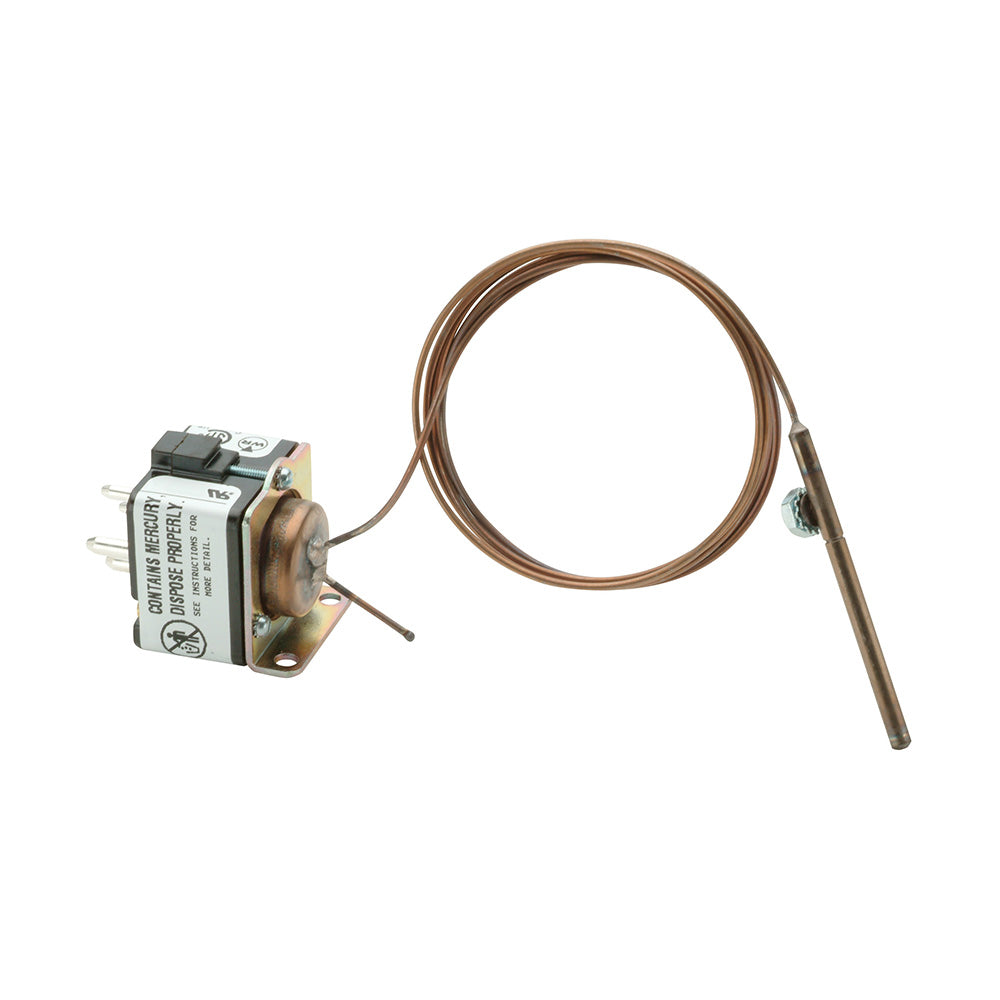

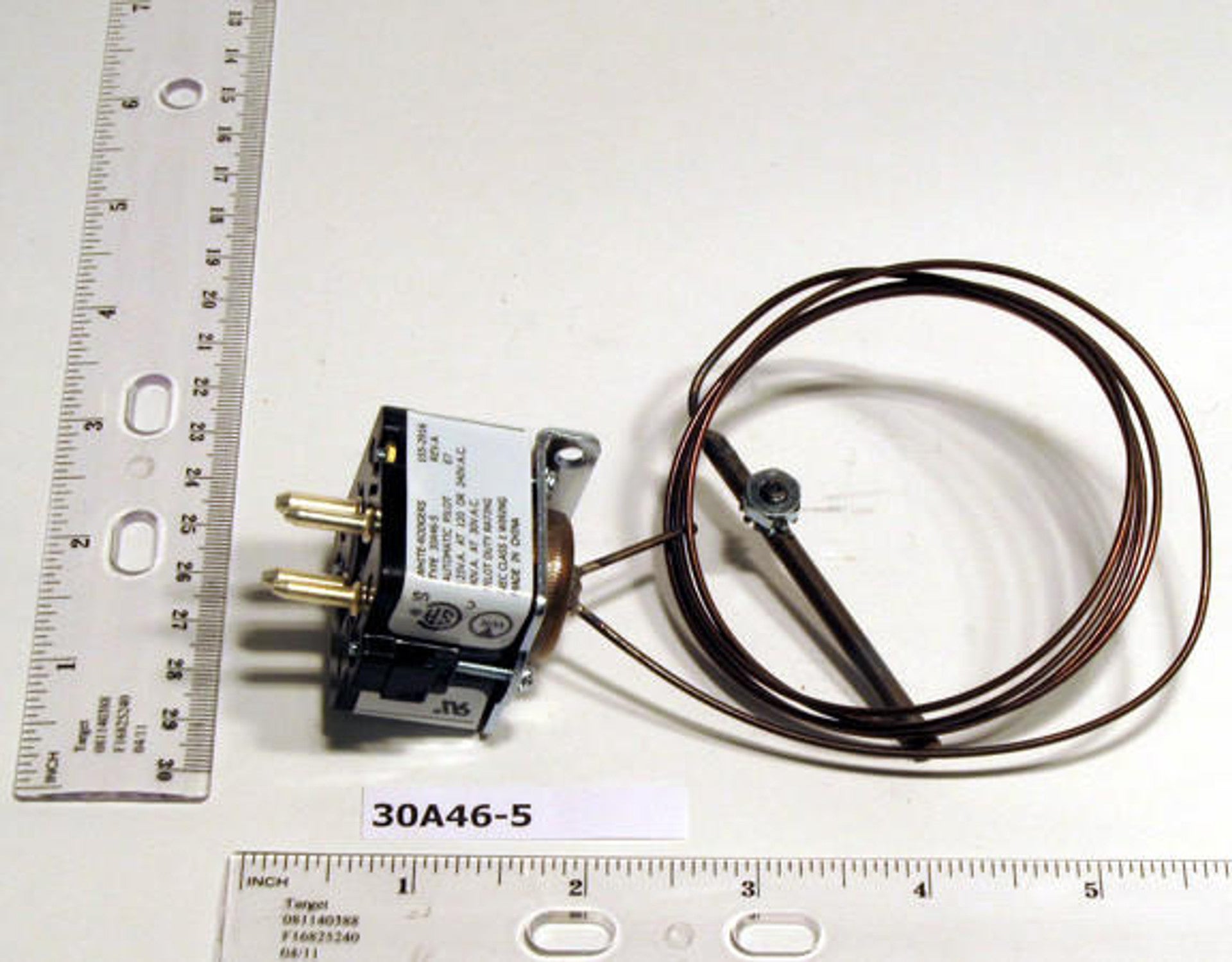

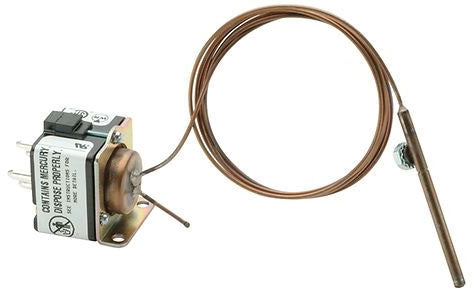

The WHITE-RODGERS 30A46-5 is a plug-in type mercury flame sensor with a 48-inch element. Designed for gas burner control, this sensor combines a rugged snap-action SPDT switch and a powerful mercury-actuated thermal element. It can be used with natural, manufactured, or mixed gases, and with LP gases. The SPDT switch can energize the igniter circuit to relight the pilot.

• Plug-in feature requires no additional electrical connections or mounting devices
• Sensor combines a rugged snap-action SPDT switch and powerful mercury actuated thermal element
• 48" Element

Product Highlights

The WHITE-RODGERS 30A46-5 mercury flame sensor provides reliable flame detection and safety control for gas-fired equipment. It ensures stable flame detection and safe operation.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 30A46-5
• Country of Origin: United States

Technical Specifications

• Brand: White-Rodgers
• Item Model Number: 30A46-5
• Type: Plug-In
• Voltage: 125V AC
• Gas Type: NG, LP or Mixed Gas
• Length (In.): 7 1/2 in
• Product Type: Flame Sensor
• Package Quantity: 1 Ea
• Used On: Gas Burner Control
• Additional Information: Element Length 48 Inch; Electrical Rating 125 Volt Amp at 120/240 Volt AC, 90 Volt Amp at 30 Volt AC; Contact Closing Time 60 Second; Contact Opening Time 40 Second; Approval CSA
• CATALOG NUMBER: 30A46-5
• CUSTOMER UPC: 78671000503
• Category: HVAC/R & Fans
• Description: Gas Burner Control Mercury Flame Sensor; Type Mercury Flame Sensor, Plug-In; Used On Gas Burner Control; Element Length 48 Inch; Electrical Rating 125 Volt Amp at 120/240 Volt AC, 90 Volt Amp at 30 Volt AC; Contact Closing Time 60 Second; Contact Opening Time 40 Second; Approval CSA
• Features/Benefits: Plug-In Feature Requires No Additional Electrical Connections or Mounting Devices; Sensor Combines a Rugged Snap-Action SPDT Switch and Powerful Mercury Actuated Thermal Element; No Button to Depress - Sensors are Recycling Type Which Require Relighting or Possible Restoration of Proper Gas Pressure to Return to Operation; The SPDT Switch Can Energize Igniter Circuit to Relight Pilot
• Manufacturer Name: White-Rodgers
• Manufacturer Part Number: 30A46-5
• Manufacturer Part Number Additional: 30A46-005S1
• Price UOM: EA
• Price UOM Quantity: 1
• Series/Model: 30A46
• UNSPSC Code: 40101800
• UPC: 786710005039
• Item Number: 30A46-5
• Brand Name: White Rodgers
• Item: 30A46-5
• Overview: Mercury Flame Sensor, 12” Element, No Locating Stud On Bulb
