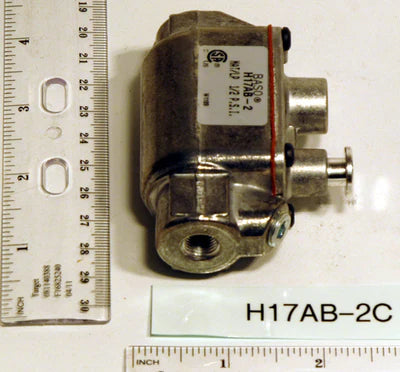

Baso H17AB-2C Automatic Pilot Valve, High Temperature, 1/8 x 1/8 Inch Inlet/Outlet

Product Description

The Baso H17AB-2C Automatic Pilot Valve ensures safety by automatically shutting off gas flow if the flame heating the thermocouple goes out. It supports standing pilot applications with natural gas and liquefied petroleum gas.

• Reliable automatic shutoff
• Works with natural and LP gas
• Easy reset button

Product Highlights

This valve is ideal for room heaters, infrared heaters, portable heaters, catalytic heaters, and refrigerators. It is also suitable for commercial ovens and broilers with high ambient temperatures up to 300°F (149°C).

Product Information

Standard Information

• Brand: Baso Gas Products
• Item Number: H17AB-2C

Technical Specifications

• Country of Origin: United States
• Product Type: Electronic Component
• Inlet/Outlet Size: 1/8 x 1/8 inch
• Dimensions: 3.6 cm length, 6.1 cm width, 10.4 cm height
• Package Weight: 1.0 lbs
• Application: Room heaters, infrared heaters, portable heaters, catalytic heaters, refrigerators, commercial ovens, broilers
• BTU Capacity: 54000 BTU
• Maximum Temperature: 300°F
