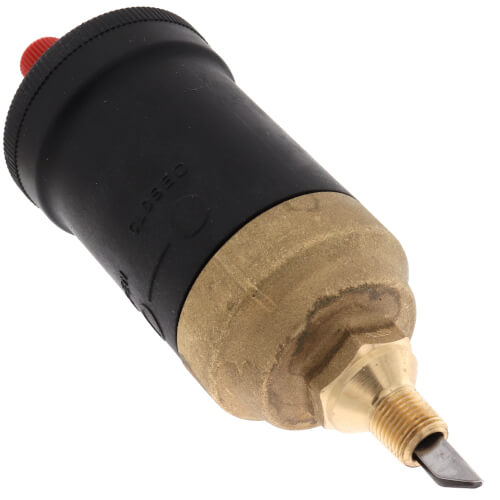

Resideo EA122A1002 Automatic Air Vent with Built-in Shutoff Valve for Hydronic Heating Systems

Product Description

This Resideo EA122A1002 Automatic Air Vent ensures effective airflow management in hydronic heating systems. This air vent is designed to operate quietly and efficiently, removing trapped air from closed water systems. The product features a removable float and valve assembly, allowing for easy service and maintenance.

• Integrated shut-off valve for controlling flow.
• Constructed from corrosion and chemical-resistant materials.
• Compatible with water systems using light concentrations of glycol.

Product Highlights

This automatic air vent is made for hydronic applications and cannot be used with steam systems. It includes features to prevent leakage and ensure reliability.

Product Information

Standard Information

• Manufacturer: Resideo
• MPN: EA122A1002

Technical Specifications

• Connection Type: NPT Male
• Connection Size: 1/8 inches
• Max Pressure: 90 psi
• Max Temperature: 212 °F
• Dimensions: 5.25 inches long x 1.875 inches diameter
• Weight: 0.45 pounds
• Material: Thermoplastic
• Warranty: 1 Year
