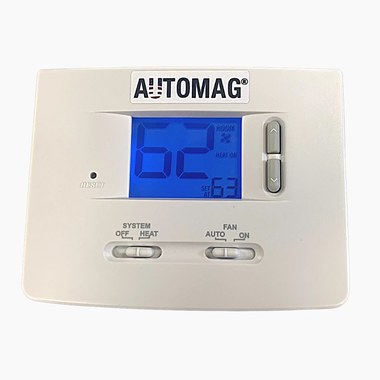

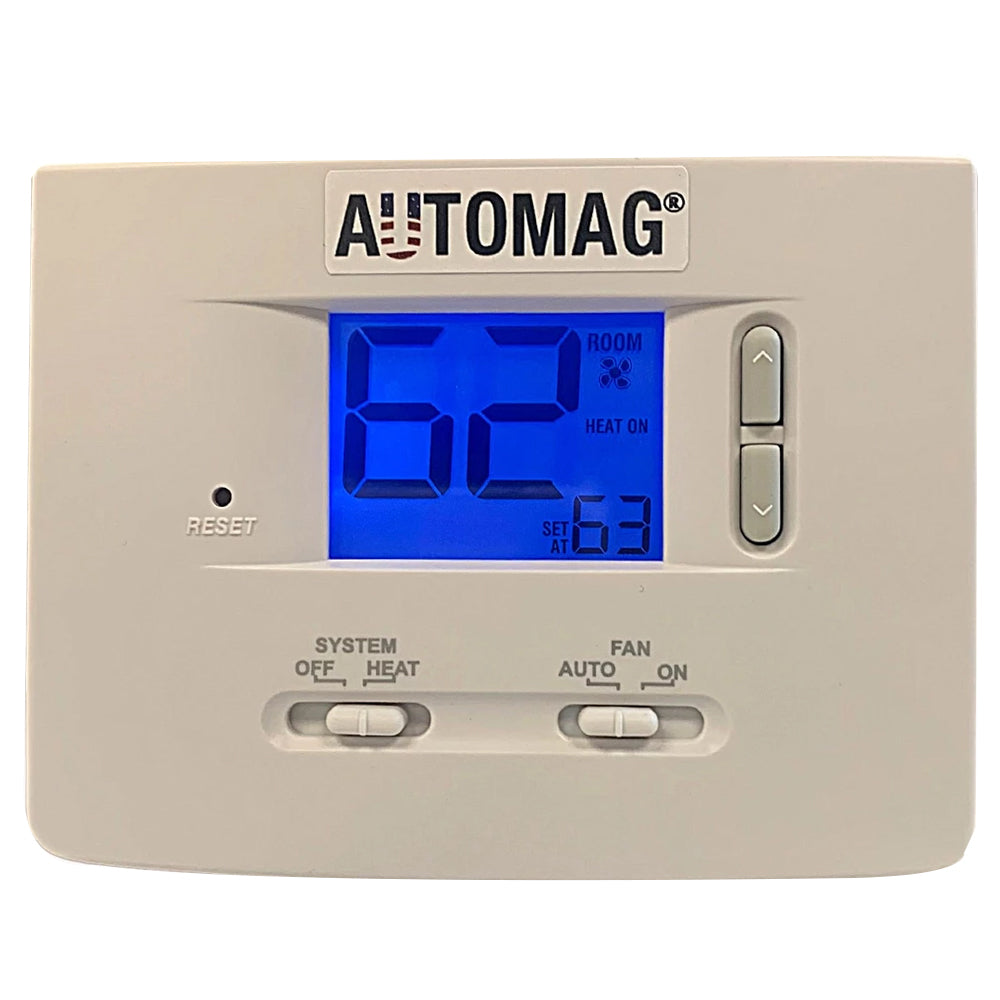

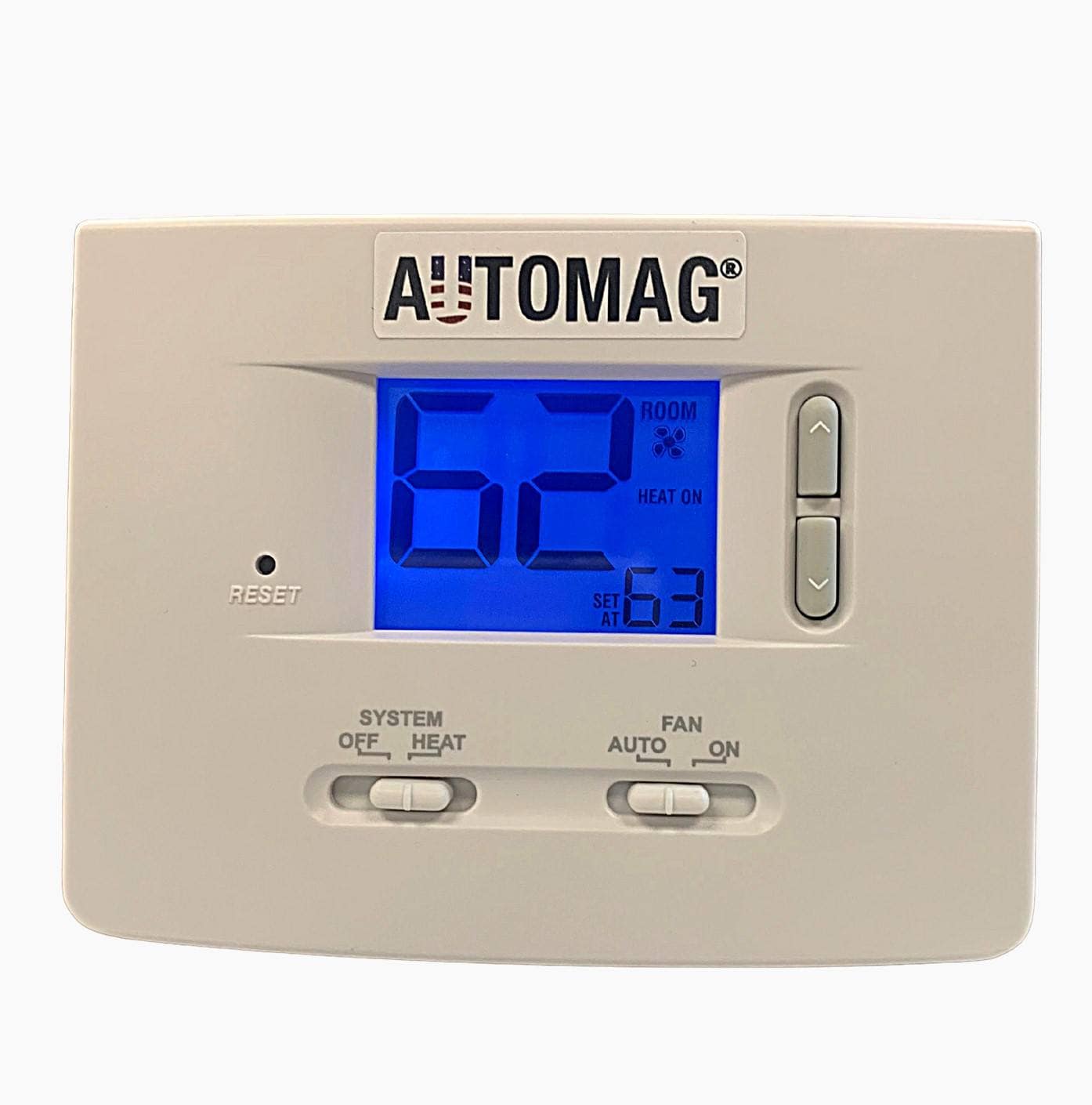

Automag TS1025 Digital Thermostat

Product Description

The Automag TS1025 Digital Thermostat is a manually operated thermostat designed for single-stage heating systems. It features a 2 square inch display with backlight for clear visibility in various lighting conditions. This thermostat can be powered by hardwiring or by using two AA alkaline batteries, providing flexibility in installation.

It is compatible with conventional, millivolt, and two or three wire hydronic zone systems. Constructed from ductile iron, this thermostat is made for durability and resistance to corrosion. The device allows for R, G, W1, V3, or C termination capabilities and has an adjustable temperature limit, making it suitable for industrial applications in heating, cooling, and ventilation systems.

• Two square inch display with backlight
• Compatible with multiple heating systems
• Durable ductile iron construction

Product Highlights

Ideal for managing temperature settings in various HVAC systems.

Product Information

Standard Information

• Item Number: TS1025
• Brand: Automag

Technical Specifications

• Product Type: Ductile Iron
• Weight: 1 lbs
• Battery: Uses 2 AA alkaline batteries
• Electrical Rating: 24 Volts AC (18-30 VAC)
• Max Current per Terminal: 1 amp
• Total Max Load: 2 amps (all terminals)
• Cooling Stages: 0
• Heating Stages: 1
• Programmable: Manual
• Type: Thermostat
