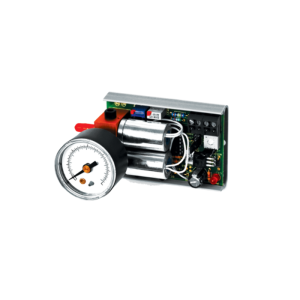

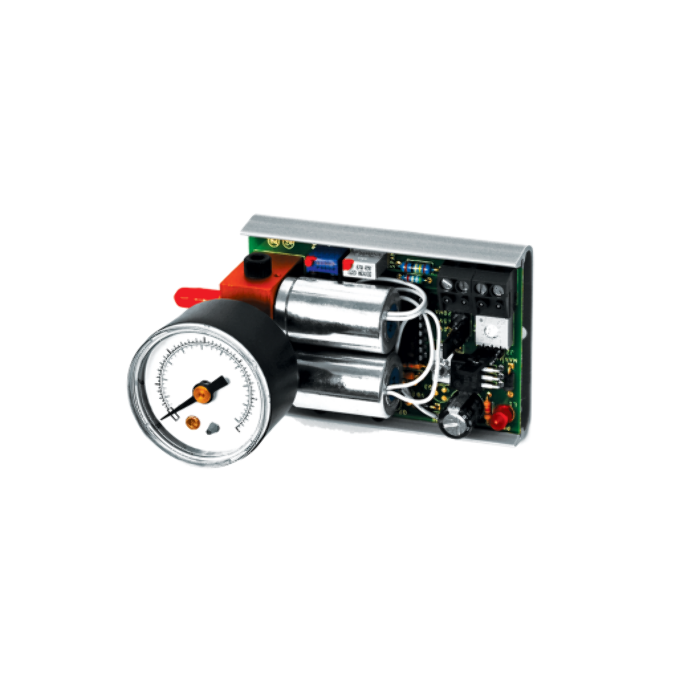

Auto Components PXP2.3GFS Electric To Pneumatic Transducer

Product Description

The Auto Components PXP2.3GFS is an electric to pneumatic transducer designed for efficient pressure control. This product converts electrical signals into pneumatic outputs, making it suitable for various industrial applications.

• Input signal options: 1 to 5, 2 to 10, 3 to 15 VDC or 4 to 20 mA
• Output pressure range: from 0 to 15 psig
• Features automatic exhaust on power failure

Product Highlights

This transducer provides precise pressure modulation. It ensures compliance with set points determined by the input signal.

Product Information

Standard Information

• Brand: Auto Components
• Min Order Quantity: 1

Technical Specifications

• Control Valve Modulation: Automatically regulates branch line pressure
• Feedback Signal: 0 to 5 VDC indicating resultant branch line pressure
• Three-Way Mixing Valve Control
• Pilot Positioner Control
• Compressor Staging
• Chiller Loading
