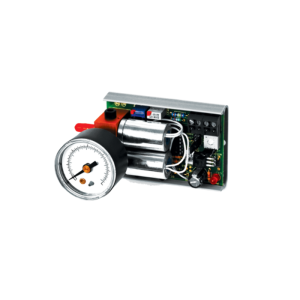

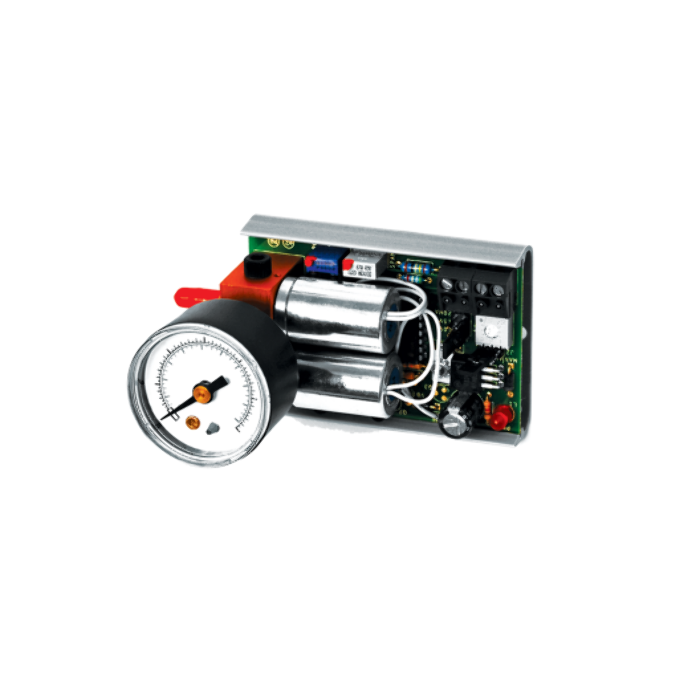

Auto Components PXP2.3G Electric To Pneumatic Transducer

Product Description

The Auto Components PXP2.3G Electric To Pneumatic Transducer converts an electric input signal into a pneumatic output. This product is used in various applications requiring automated control systems.

• Automatic modulation of control valves to maintain branch line pressure.
• Includes a feedback signal for monitoring branch line pressure.
• Supports three way mixing valve control and compressor staging.

Product Highlights

The Electric To Pneumatic Transducer provides reliable and efficient control by responding to electric signals to adjust pneumatic pressures accordingly.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: PXP2.3G

Technical Specifications

• Input Signal Source: 1 to 5, 2 to 10, 3 to 15 VDC or 4 to 20 mA
• Output Pressure Range: 0 to 15 psig
• Control Features: Will modulate control valves based on input signals
• Feedback Signal: 0 to 5 VDC indicating resultant branch line pressure
• Application: Suitable for pilot positioner control and chiller loading
