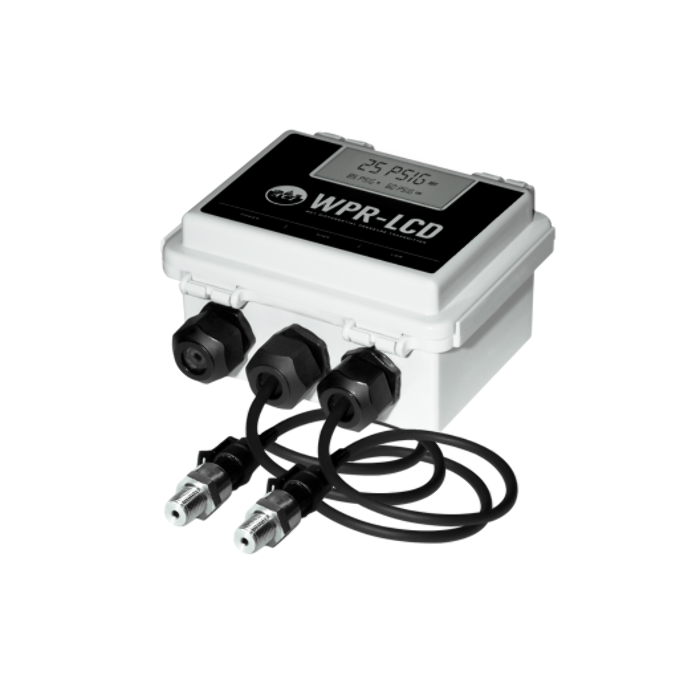

Auto Components A/WPR2-100-10-LCD Wet To Wet Pressure Transmitter

Product Description

The Auto Components A/WPR2-100-10-LCD is a wet to wet pressure transmitter designed for accurately measuring differential pressures in various applications. It provides pressure measurement capabilities up to one hundred psi in uni-directional ranges and offers bi-directional ranges in several options as well.

• Features a push button auto-zero function for remote calibration.
• Flexible outputs for various applications.
• Reduces installation time and provides mounting flexibility.

Product Highlights

This transmitter is ideal for monitoring pumps, compressors, filters, and heat exchangers. It is suitable for flow applications and ensures precise readings of wet media pressures.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/WPR2-100-10-LCD

Technical Specifications

• Uni-Directional Ranges: 0 To 100, 0 To 50, 0 To 25, 0 To 10 psid
• Bi-Directional Ranges: +/-100, +/-50, +/-25, +/-10
• Output: 0 To 10 VDC
• Harness Length: 10 ft.
• Display: LCD
