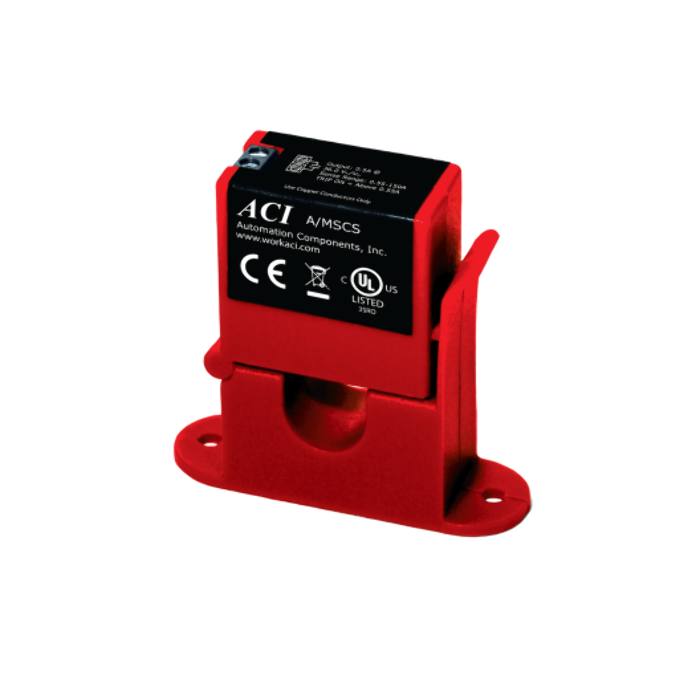

Auto Components A/MSCS Miniature Fixed Current Switch

Product Description

Auto Components A/MSCS is a miniature fixed current switch designed for various AC current monitoring applications. This product operates within a range of zero to one hundred fifty amps. It is suited for systems needing a fixed trip point to monitor equipment status, specifically for on and off control of motors, pumps, and compressors.

• Split-core design for easy installation without disconnecting wires
• Normally open contact type for reliable performance
• Fixed trip point for accurate monitoring

Product Highlights

This switch offers a simple solution for current monitoring in retrofit applications and service vehicles, providing versatility across multiple setups.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/MSCS

Technical Specifications

• Current Type: Current Switch
• Current Core Type: Split-Core
• Current Contact Type: Normally Open
• Current Amperage Range: 0 To 150 Amps
• Current Contact Rating: 0.5A @ 36 VAC/DC
• Current Trip Point Type: Fixed Trip Point
• Current Trip Point Range: 0.55 Amp Or Less
