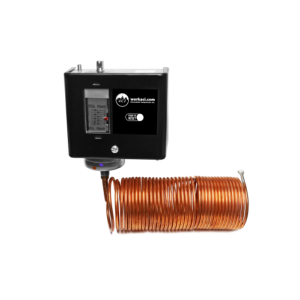

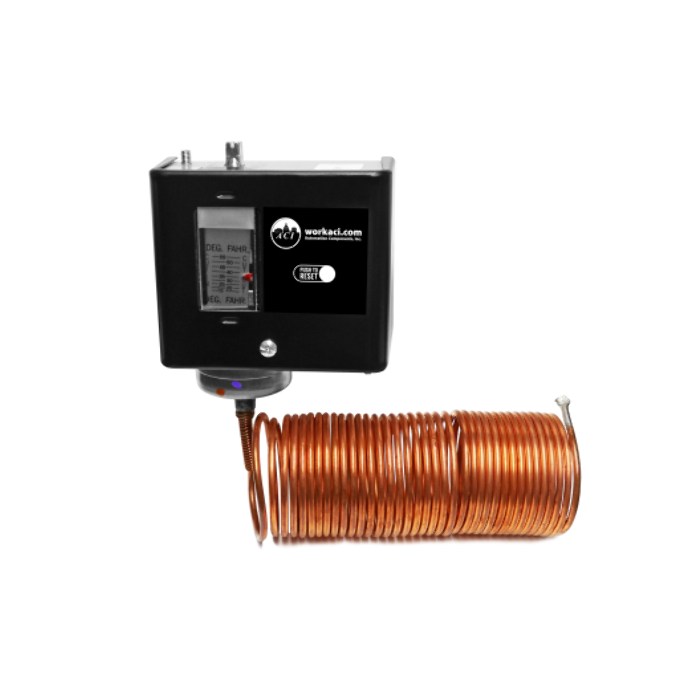

Auto Components A/FLS-20-M Freeze Stat Manual Reset 20 ft.

Product Description

The Auto Components A/FLS-20-M is a manual reset freeze stat designed to protect heating and cooling coils from freezing. This unit features a low temperature limit switch that is suitable for use in situations where temperature stratification may occur. The unit is equipped with a vapor charged capillary sensing element that ensures reliable performance in low-temperature environments.

• Protects heating and cooling coils from freezing
• Low temperature limit switch for accurate monitoring
• Includes a NEMA 1 rated metal enclosure

Product Highlights

Ideal for applications requiring low-temperature cutout protection, the A/FLS series freeze stat is versatile for various equipment types.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/FLS-20-M

Technical Specifications

• Temperature Range: 15 F to 55 F
• Fixed Differential: 5 F
• Tubing Length: 20 ft. of 1/8 in. O.D. tubing
• Contact Type: Four-wire two circuit contact block
• Isolation: Two isolated sets of contacts
