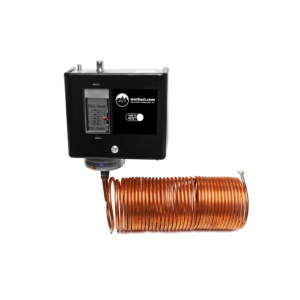

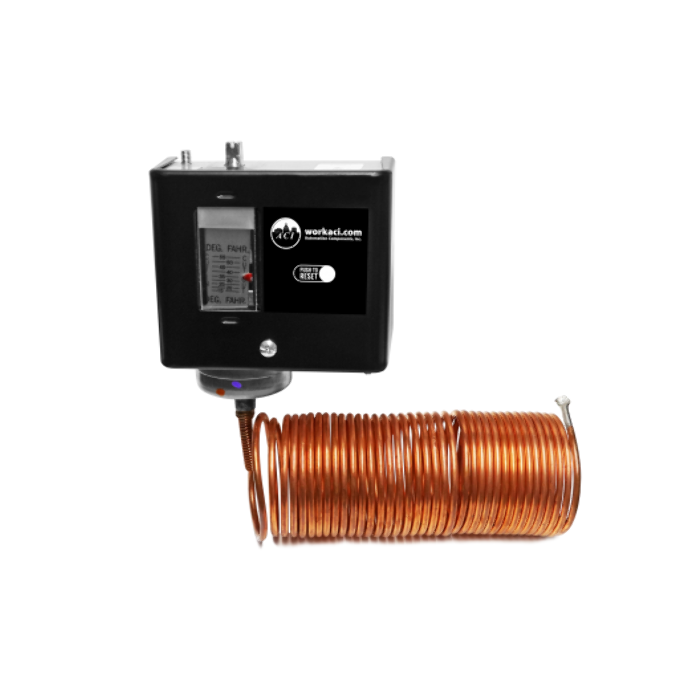

Auto Components A/FLS-10-M Freeze Stat Manual Reset 10 ft.

Product Description

The Auto Components A/FLS-10-M is a manual reset freeze stat designed to protect heating and cooling coils in HVAC systems. This unit features a two-circuit contact block with isolated contact sets, and a sensing element made with vapor charge technology. The included tubing allows for an extended reach of ten feet.

• Range: Fifteen degrees Fahrenheit to fifty-five degrees Fahrenheit with a fixed differential of five degrees Fahrenheit.
• Designed for low-temperature cutout protection in systems vulnerable to temperature stratification.
• Standard NEMA 1 rated metal enclosure with a conduit knockout for line voltage connections.

Product Highlights

This freeze stat is ideal for applications requiring accurate temperature control to prevent freezing conditions.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/FLS-10-M

Technical Specifications

• Temperature Range: 15°F to 55°F
• Fixed Differential: 5°F
• Tubing Length: 10 feet
• Capillary Type: Vapor Charged
• Contact Configuration: Two Isolated Sets
• Enclosure Rating: NEMA 1
