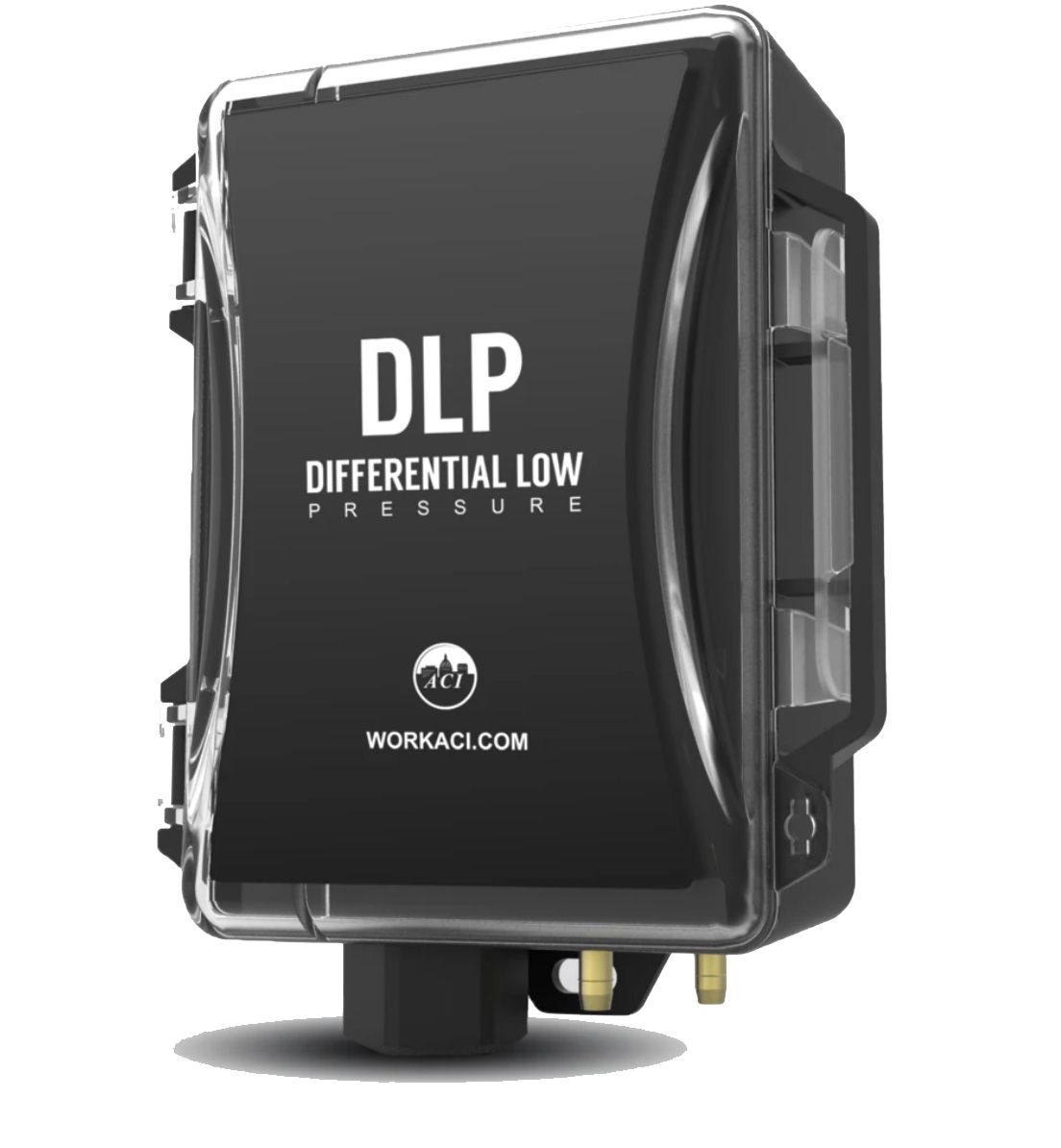

Auto Components A/DLP-010-W-U-N-A-0 Differential Low Pressure Transmitter

Product Description

The Auto Components A/DLP-010-W-U-N-A-0 is a differential low pressure transmitter designed for various HVAC applications. It operates with a supply voltage of 16 to 36 VDC and provides a four to twenty milliamp output. This transmitter supports default pressure ranges and has a proof pressure of three hundred fifty inch water column.

• Applications include building and duct static pressure measurements.
• Features a piezoresistive silicon sensing element for accurate differential pressure measurement.
• Easy access to the zero function with a hinged cover and integrated locking tab.

Product Highlights

Ideal for filter monitoring, air flow measurement, and process control applications.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/DLP-010-W-U-N-A-0

Technical Specifications

• Supply Voltage: 16 to 36 VDC
• Output: 4 to 20 mA
• Default Ranges: 10 inches
• Proof Pressure: 350 inches w.c.
• Enclosure Material: Flame retardant polycarbonate UL94-5VA
