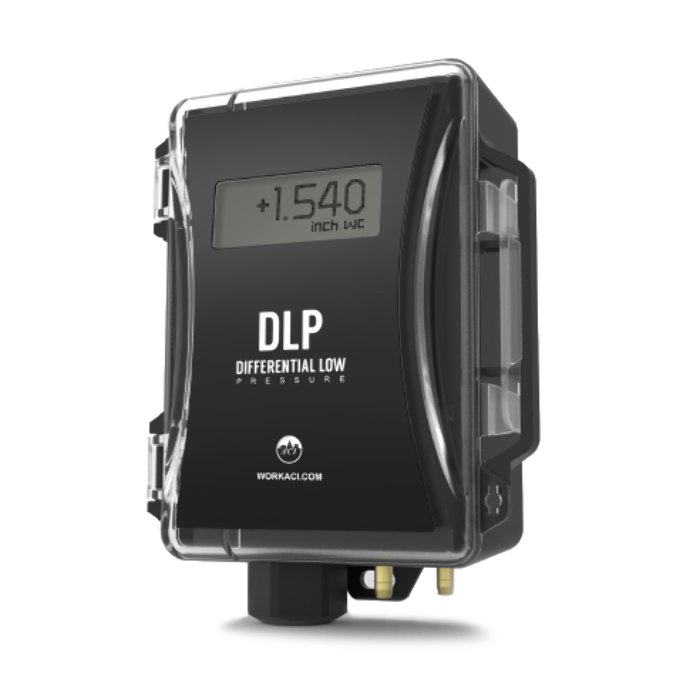

Auto Components A/DLP-010-W-U-D-A-0 Differential Low Pressure Transmitter

Product Description

The Auto Components Differential Low Pressure Transmitter, model A/DLP-010-W-U-D-A-0, is designed for accurate pressure measurement in HVAC systems. This device operates with a supply voltage of sixteen to thirty-six VDC and provides an output of four to twenty mA. It features a standard range of ten inches and a proof pressure rating of three hundred fifty inches w.c. The transmitter is enclosed in a flame retardant polycarbonate casing, rated UL94-5VA, ensuring durability and reliability in various environments. Additionally, it is equipped with an LCD display for straightforward monitoring.

• Voltage supply: 16 to 36 VDC
• Output: 4 to 20 mA
• Proof pressure: 350 inches w.c.

Product Highlights

This transmitter is suitable for building and duct static pressure, filter monitoring, airflow measurement, and process control applications. It utilizes a piezoresistive silicon sensing element to accurately sense differential pressure and provide a proportional analog output. A hinged cover facilitates easy access to the adjustment controls, allowing for zero function and field-selectable ranges.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/DLP-010-W-U-D-A-0

Technical Specifications

• Supply Voltage: 16 to 36 VDC
• Output Signal: 4 to 20 mA
• Default Ranges: 10 inches
• Proof Pressure: 350 inches w.c.
• Enclosure Material: Flame Retardant Polycarbonate UL94-5VA
• Display Type: LCD
