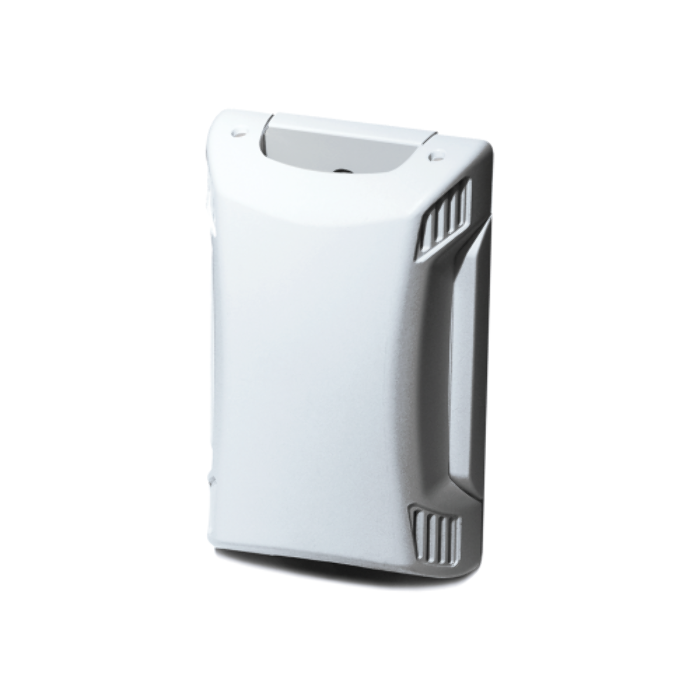

Auto Components A/CO2-R2 Room CO2 Sensor

Product Description

The Auto Components Room CO2 Sensor, model A/CO2-R2, accurately measures carbon dioxide levels in a variety of environments. This sensor operates using non-dispersive infrared technology to ensure precise readings. It is designed for applications in schools, office buildings, auditoriums, gymnasiums, shopping malls, theatres, and more. With outputs of zero to five VDC, zero to ten VDC, and four to twenty mA, the sensor provides versatile integration options.

• Monitors CO2 levels up to two thousand parts per million.
• Ideal for demand control ventilation and economizers.
• Eliminates the need for manual calibration with ABC software.

Product Highlights

This room CO2 sensor is a cost-efficient solution for monitoring indoor air quality.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/CO2-R2

Technical Specifications

• Power Supply: 24 VAC, 50/60 Hz (Half-Wave Rectifier)
• Voltage Range: 16.5-40 VDC maximum
• Output Options: 0-5 VDC, 0-10 VDC, 4-20 mA
• Applications: Schools, offices, auditoriums, gyms, malls, theatres
• Measurement Range: Up to 2000 ppm
