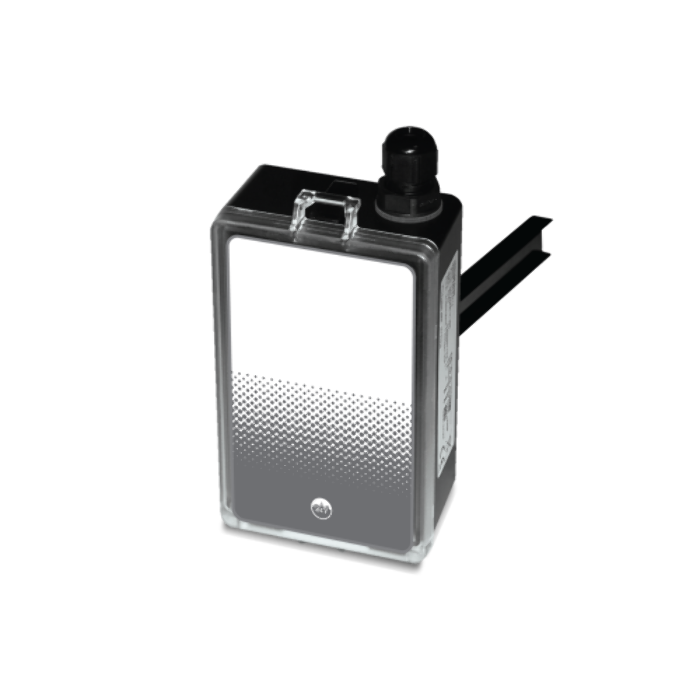

Auto Components A/CO2-DUCT Duct CO2 Sensor

Product Description

The Auto Components Duct CO2 Sensor, MPN A/CO2-DUCT, measures carbon dioxide levels in various environments. This sensor is suitable for schools, office buildings, auditoriums, gymnasiums, shopping malls, and theatres. It features outputs of zero to five VDC, zero to ten VDC, and four to twenty mA. This plastic-encased sensor operates on a supply voltage range of sixteen point five to forty VDC and is powered by twenty-four VAC at twenty percent.

• Monitors CO2 levels to maintain indoor air quality.
• Utilizes non-dispersive infrared technology for accurate readings.
• Eliminates the need for manual calibration with ABC software.

Product Highlights

This sensor provides a cost-effective solution for climate control in buildings by measuring CO2 concentrations up to two thousand ppm, offering proportional analog outputs for effective air quality management.

Product Information

Standard Information

• Brand: Auto Components
• Part Number: A/CO2-DUCT

Technical Specifications

• Output: 0 to 5 VDC, 0 to 10 VDC, 4 to 20 mA
• Supply Voltage: 16.5 - 40 VDC maximum, 24 VAC 20%, 50/60 Hz
• Application: Schools, Offices, Gymnasiums, Shopping Malls, Theatres
• Measurement Range: Up to 2000 ppm
• Technology: Non-dispersive infrared
