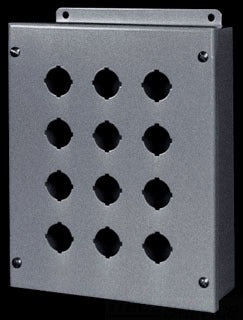

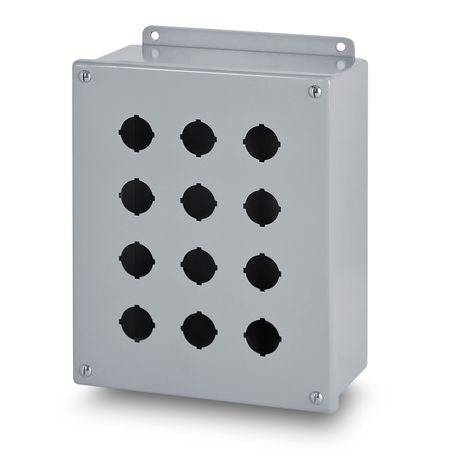

Austin Electrical Enclosures AB-C1NPB 9x3.5x3 Push Button Enclosure

Product Description

Austin Electrical Enclosures AB-C1NPB is a reliable push button enclosure measuring nine inches in length, three inches in width, and three and a half inches in depth. This enclosure is made from 14 gauge steel and features a polyester powder-coated finish to provide durability. It meets UL 50 and CUL standards and is suitable for environments requiring NEMA 4, 12, and 13 ratings.

• Constructed from rugged steel material
• ANSI 61 gray color finish
• Compatible with standard 30mm push button devices

Product Highlights

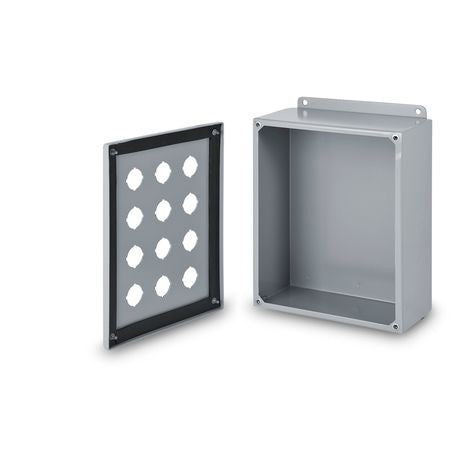

This enclosure is designed for applications involving pilot lights, push buttons, and switches. It is equipped with external mounting feet for easy installation and features a gasketed cover secured by captivated screws to maintain integrity under various environmental conditions.

Product Information

Standard Information

• Manufacturer: Austin Electrical Enclosures
• Brand: Austin Electrical Enclosures

Technical Specifications

• MPN: AB-C1NPB
• Material: Steel
• Finish: Polyester Powder Coated
• Color: Gray
• Dimensions: Length - 9 inches, Width - 3 inches, Depth - 3.5 inches
• NEMA Rating: NEMA 4/12/13
• Mounting Type: Screw-On
• Application: For Pilot Light, Pushbutton, Switch
