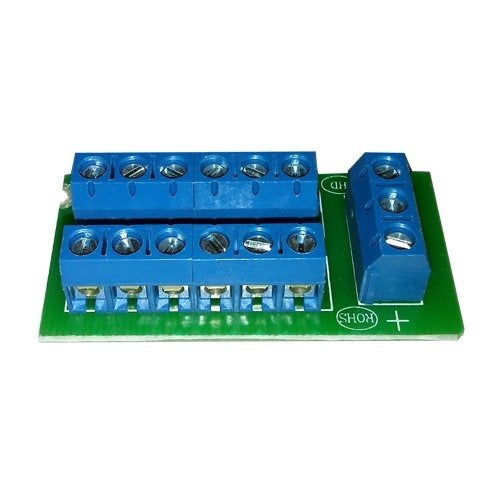

Atw Security bt-600 Bus Terminal Expander 1 to 6

Product Description

The ATW SECURITY bt-600 is a bus terminal expander that converts a single control-panel terminal into six individual screw terminals. It is designed for low-voltage security, fire, and access-control wiring applications where multiple field devices or conductors must land on a single panel output. The bt-600 simplifies homerun wiring by fanning out one source terminal into six discrete connection points, reducing wire bundling and keeping terminations organized inside a panel enclosure. Licensed alarm installers and low-voltage technicians are the primary installers of this device.

The bt-600 is suited for residential and light commercial installations where a control panel's output terminal capacity is limited. Typical uses include distributing panel power to multiple sensors or devices, splitting a phone tip-and-ring pair to several zones, or connecting multiple speaker loads to a single amplifier output. It is particularly useful in retrofit installations where existing panels have limited terminal real estate and additional field wiring must be added without replacing the panel.

Key Features

• Expands one control-panel terminal into six individual screw terminals
• Screw-terminal connections accommodate standard low-voltage conductor gauges
• Supports power distribution, phone tip-and-ring, and speaker wiring applications
• Keeps panel wiring organized and reduces wire bundling at the source terminal
• Compact form factor suited for installation inside standard panel enclosures

Compatibility

Designed as an OEM-style accessory for low-voltage control panels used in security, fire alarm, and access-control systems where terminal expansion is required.

Installation Notes

Installation should be performed by a licensed low-voltage or alarm technician in accordance with applicable local codes and NFPA 72 guidelines where applicable. De-energize the control panel before making any terminal connections to prevent damage to the panel or field devices. Ensure conductor gauge and insulation rating are appropriate for the circuit voltage and current before landing wires on the expander terminals. Do not exceed the current capacity of the source terminal on the control panel when distributing power through the bt-600.

Technical Specifications

• Terminal Configuration: 1 input to 6 outputs
• Connection Type: Screw terminals
• Application: Low-voltage security, fire, access control, speaker distribution

Standard Information

• Brand: ATW SECURITY
• Manufacturer Part Number: bt-600
