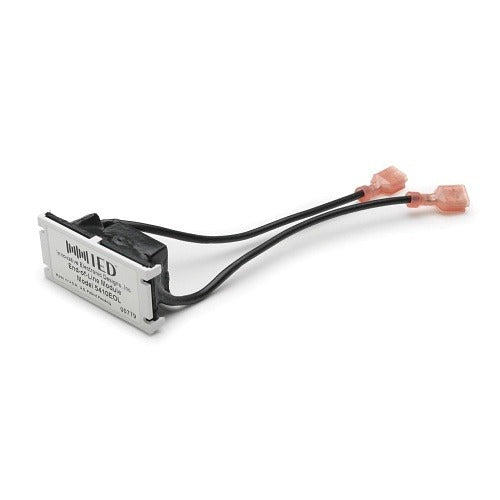

Atlasied IED5410EOL 5400 Series Eol Testing Module

Product Description

The ATLASIED IED5410EOL is an end-of-line (EOL) testing module designed for use with the ATLASIED 5400 Series speaker system. End-of-line modules are used in distributed audio and life-safety speaker networks to terminate and supervise signal lines, allowing technicians to verify circuit integrity and system functionality. The IED5410EOL is sold individually and installs at the far end of a supervised speaker circuit, completing the supervision loop. Audio system integrators and low-voltage technicians are the primary installers of this component.

The IED5410EOL is intended for use within the ATLASIED 5400 Series speaker platform, commonly deployed in commercial and institutional distributed audio or voice evacuation systems. These systems are found in schools, offices, healthcare facilities, and public venues where supervised speaker circuits are required for code compliance or system diagnostics. This module supports the circuit supervision and end-of-line testing functions native to the 5400 Series architecture.

Key Features

• End-of-line termination for supervised speaker circuit testing
• Designed specifically for the ATLASIED 5400 Series speaker system
• Supports circuit integrity verification and system diagnostics
• Sold as an individual unit for single-circuit termination
• Compact accessory form factor for installation at speaker locations

Compatibility

Designed as an end-of-line testing accessory for the ATLASIED 5400 Series speaker system.

Installation Notes

Installation should be performed by a licensed low-voltage technician or qualified audio systems integrator familiar with supervised speaker circuit design. De-energize the speaker circuit and follow applicable local codes and system documentation before connecting or replacing end-of-line components. Consult the 5400 Series system documentation for proper termination placement and supervision loop requirements. Do not substitute this module with generic termination devices, as improper termination may compromise circuit supervision functionality.
