ATLAS ZA1803737 Big Trio Filter Housing Kit with Gauges and Drains

Product Description

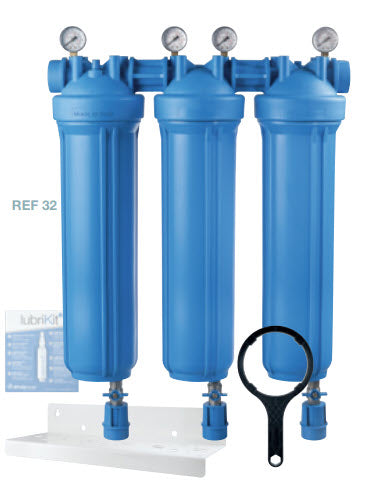

The ATLAS ZA1803737 Big Trio Filter Housing Kit is made for effective filtration. This kit comes with three filter housings along with pressure gauges and drain kits. The housings fit cartridges that have a four and one-half inch outside diameter. It has reinforced polypropylene heads and PET sumps, ensuring strong performance. The product features a pressure-relief mechanism equipped with an o-ring seal. A bracket and wrench are included for straightforward installation and maintenance.

• Includes four pressure gauges for monitoring pressure levels
• Comes with three drain kits for easy draining
• Compatible with cartridges having a four and one-half inch outside diameter

Product Highlights

Product Information

Standard Information

• Brand: ATLAS
• MPN: ZA1803737

Technical Specifications

• Collection: DP BIG
• End Connection Size: 1 inch
• End Connection Type: NPT
• Housing Height: 20 inches
• Housing Diameter: 4.5 inches
• Material: Polypropylene
• Sump Material: PET
• Maximum Working Pressure: 125 psi (8.6 bar)
• Minimum Operating Temperature: 39.2 °F (4 °C)
• Maximum Operating Temperature: 176 °F (80 °C)
• Flow Rate: 15 gpm
• Certifications: NSF/ANSI 42, 61, 372, CSA B483.1
