Atlas ZA1380461K Dp Mono 2.5x10 Clear Ss Inserts

Product Description

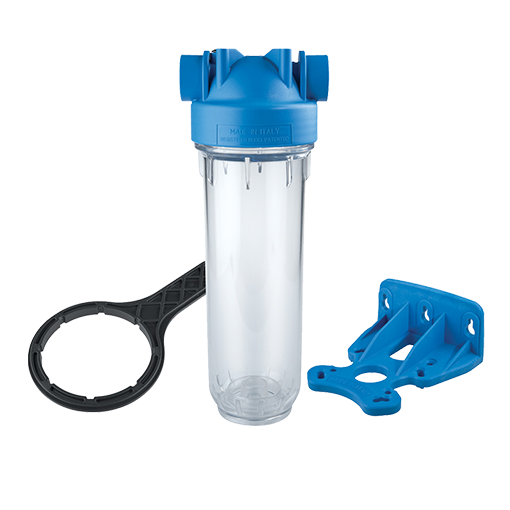

The Atlas ZA1380461K Dp Mono kit features a two and a half inches by ten inches clear sump made from PET material. It includes a three-quarter inch NPT connection and stainless steel inserts. This design works with standard filter cartridges that have an outer diameter of two and a half inches. It can accommodate both double open-ended and double O-ring cartridges. A bracket and wrench are included for easy installation.

• Clear sump made from durable PET material
• Maximum working pressure is 125 psi (8.6 bar)
• Temperature range from thirty-nine point two degrees Fahrenheit (four degrees Celsius) to one hundred thirteen degrees Fahrenheit (forty-five degrees Celsius)

Product Highlights

Product Information

Standard Information

• Brand: ATLAS FILTRI
• MPN: ZA1380461K

Technical Specifications

• Head Material: Reinforced Polypropylene
• Clear Sump Material: PET
• O-ring Material: EPDM
• Working Pressure: 125 psi (8.6 bar)
• Working Temperature Range: thirty-nine point two to one hundred thirteen degrees Fahrenheit
• Suitable for Cartridges: Up to two and a half inches OD
• Pressure-relief feature: Includes an O-ring seal
• Diameter: Two and a half inches
• Height: Ten inches
• Material: PET/Polypropylene
• Series: DP Mono Series
• Size: Three-quarter inch
• Compatible with: Standard ten inches and twenty inches SX (DOE) cartridges and BX cartridges
