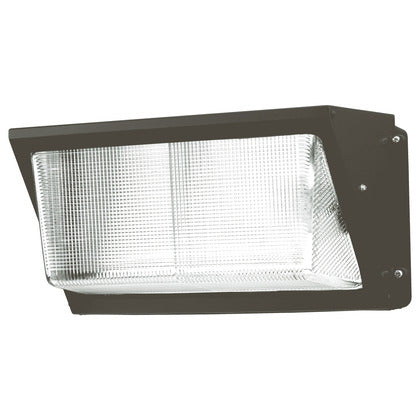

Atlas WLDS4-13L Classic Fully Selectable Wall Light Large

Product Description

The ATLAS WLDS4-13L replaces up to 12 standard wall lights with just one. These fixtures feature selectable lumens and color temperature, reducing stocking complexity and providing additional flexibility for contractors. These wall lights utilize an innovative, proprietary design to eliminate glare and wasted light. A unique design directs the light forward and downward.

• Replace 12 standard wall lights with just 1 fixture.
• Utilizes an innovative, proprietary design to eliminate glare and wasted light.
• Same footprint as the fixtures they replace, reducing labor costs.

Product Highlights

This wall light provides a smooth, uniform light pattern on the ground. The durable, die-cast aluminum housing provides environmental protection and aids in heat dissipation. Optional emergency battery backup is available.

Product Information

Standard Information

• Brand: ATLAS
• Manufacturer Part Number: WLDS4-13L

Technical Specifications

• CRI: 70
• Selectable 4000K CCT Delivered Lumens: 3897
• Selectable 4000K CCT Efficacy (LpW): 134
• Selectable 4500K CCT Delivered Lumens: 4073
• Selectable 4500K CCT Efficacy (LpW): 139
• Selectable 5000K CCT Delivered Lumens: 3889
• Selectable 5000K CCT Efficacy (LpW): 133
• Wattage: 29
• Replaces Up To: 175W MH
• Max Lumens: 13,500
• Min Lumens: 3,900
• Color Temperatures: Selectable 4000K, 4500K, 5000K
• Dimming: 0-10V
• Voltage: 120 - 277V
• Fixture Color: Bronze
• Color Temperature: Selectable
• Lumens: Selectable
• Light Technology: LED
• Dimmable: No
• Volts AC Range: 120 - 277
• Color: Bronze
