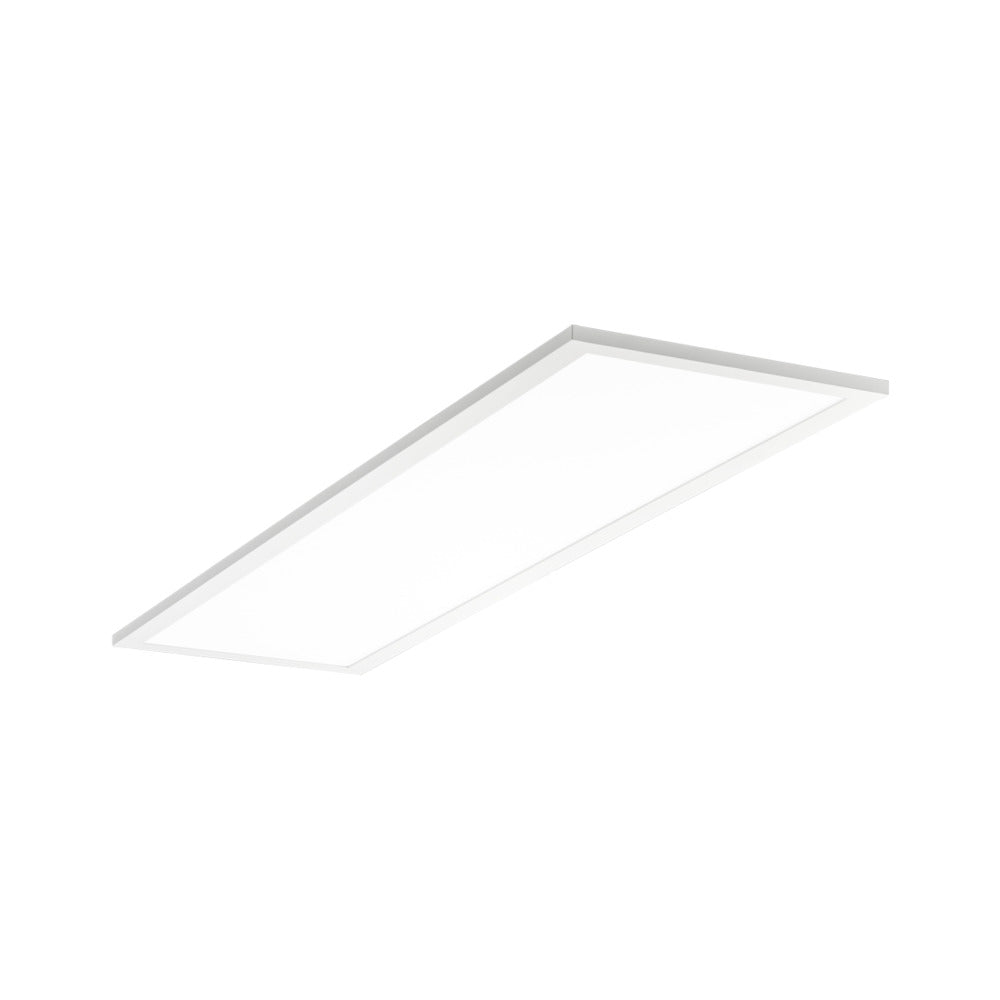

Atlas FAELP14LEDU 1 x 4 ft LED Edge Lit Panel 25 to 40 W

Product Description

The ATLAS FAELP14LEDU 1 x 4 ft LED Edge Lit Panel operates on 120-277 VAC and features field-adjustable color temperature settings of 3500K, 4000K, and 5000K with 0-10V dimming. Designed for commercial and industrial use, it offers cooler operation, brighter light, and extended LED life. The housing includes a metal back panel, wiring compartment, and a post-painted white aluminum frame.

• Field Adjustable Color Temperature: 3500K, 4000K, and 5000K
• 0-10V Dimming
• Designed for commercial and industrial applications

Product Highlights

This LED edge lit panel provides adjustable color temperature and dimming for versatile lighting in commercial and industrial environments.

Product Information

Standard Information

• Brand: ATLAS
• Manufacturer Part Number: FAELP14LEDU
• Country of Origin: USA

Technical Specifications

• Color Temperature: 3500/4000/5000 K, Selectable
• Lumens: 3102 to 4767 Lumens
• Width: 12 in
• Wattage: 25 to 40 W
• Length: 4 ft
• Light Technology: LED
• Dimmable: Yes
• Volts AC Range: 120 - 277
• Color Rendering Index: 80
• Size: 1 x 4 ft
• Type: Field Adjustable
• Voltage: 120 to 277 VAC
• Category Level 1: Lighting Fixtures
• Category Level 2: Indoor Lighting
• Category Level 3: Indoor Troffers
• Average Life: 50000 hr
• Fixture Wattage: 25 to 40 W
• Housing Material: Aluminum
• Lamp Type: LED
• Lens Type: Frosted White
• Light Color: White
• Light Output: 110 to 132 Lumens/W
• Mounting Type: Surface
• Series: FAELP
• Voltage Rating: 120/208/240/277 VAC
