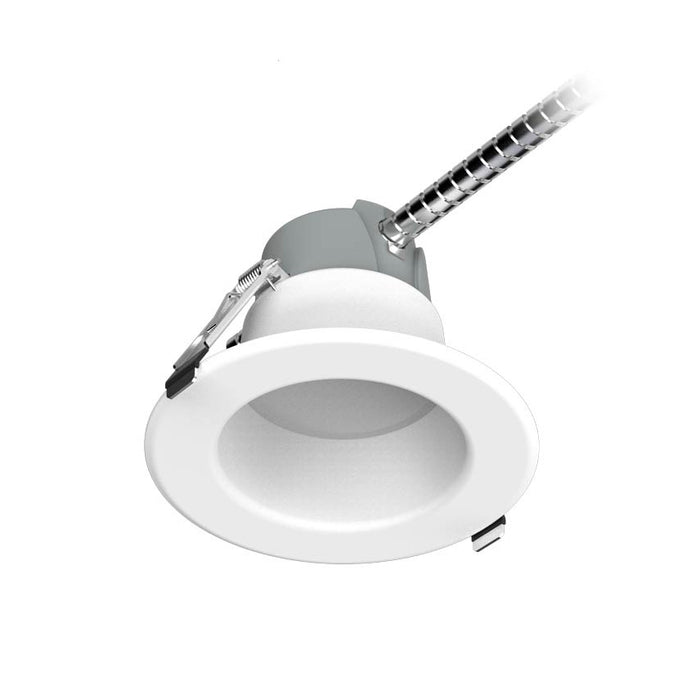

Atlas CDL4SEL1-2L Fully Selectable 4 inches Commercial Downlight 10/15/20W

Product Description

The ATLAS CDL4SEL1-2L fully selectable commercial downlights offer versatile sizes and lumen options. It features customizable color temperature options and a durable aluminum housing with engineered reflectors for wide light distributions. Suitable for direct mount or installation with a frame kit on drywall or T-Grid surfaces, providing flexibility for various lighting needs in commercial settings.

• 16 gauge spun aluminum reflector housing.
• Custom engineered reflectors for wide distribution.
• Direct mount or with Frame kit installed on drywall or T-Grid.

Product Highlights

This downlight is quick and easy to select and set up. Atlas Lighting’s economy line of products are backed by US-based customer service and technical support.

Product Information

Standard Information

• Brand: ATLAS
• Manufacturer Part Number: CDL4SEL1-2L

Technical Specifications

• Reflector Housing: 16 gauge spun aluminum
• Distribution: Custom engineered reflectors for wide distribution
• Mounting: Direct mount or with Frame kit installed on drywall or T-Grid
• Max Lumens: 2,000
• Min Lumens: 1,000
• Color Temperatures: Selectable 2700K, 3000K, 3500K, 4000K, 5000K
• Product Name: ATLAS 4 Inch LED Downlight Wattage/CCT Selectable 10W/15W/20W 2700K/3000K/3500K/4000K/5000K 120-277V 0-10V Dimming White (CDL4SEL1-2L)
• Brand: ATLAS
• SKU: CDL4SEL1-2L
• Mfr. Part Number: CDL4SEL1-2L
• Wattage: 10/15/20 Selectable
• Voltage: 120 to 277
• Technology: LED
• Housing Color: White
• Avg. Life (Hours): 50000
• Dimmable: 0-10V Dimming
• CRI: 90
• Initial Lumens: 1000-2000 Selectable
• Max Operating Temp: 104 F (40 C)
• Min Operating Temp: -4 F (-20 C)
• Body Material: 16 Gauge Spun Aluminum Reflector Housing
• Certifications: cETLus | Title 24 | JA8 | Energy Star
• Outdoor Rating: Wet Location Rated
• Fixture Type: Downlight Recessed
• Total Light Output (lumens): 1950
• Color Quality (CRI): 95
• Can Size(s) (inches): 4
• Can Rating(s): Type Non-IC
• Light Source Life (hours): 72000
• Total Input Power (Watts): 20.0
• Power Factor: 0.99
• Energy Efficiency (lumens/Watt): 97.5
• Connected Capable: No
• ENERGY STAR Certified: Yes
• UPC Code: #765364056215
