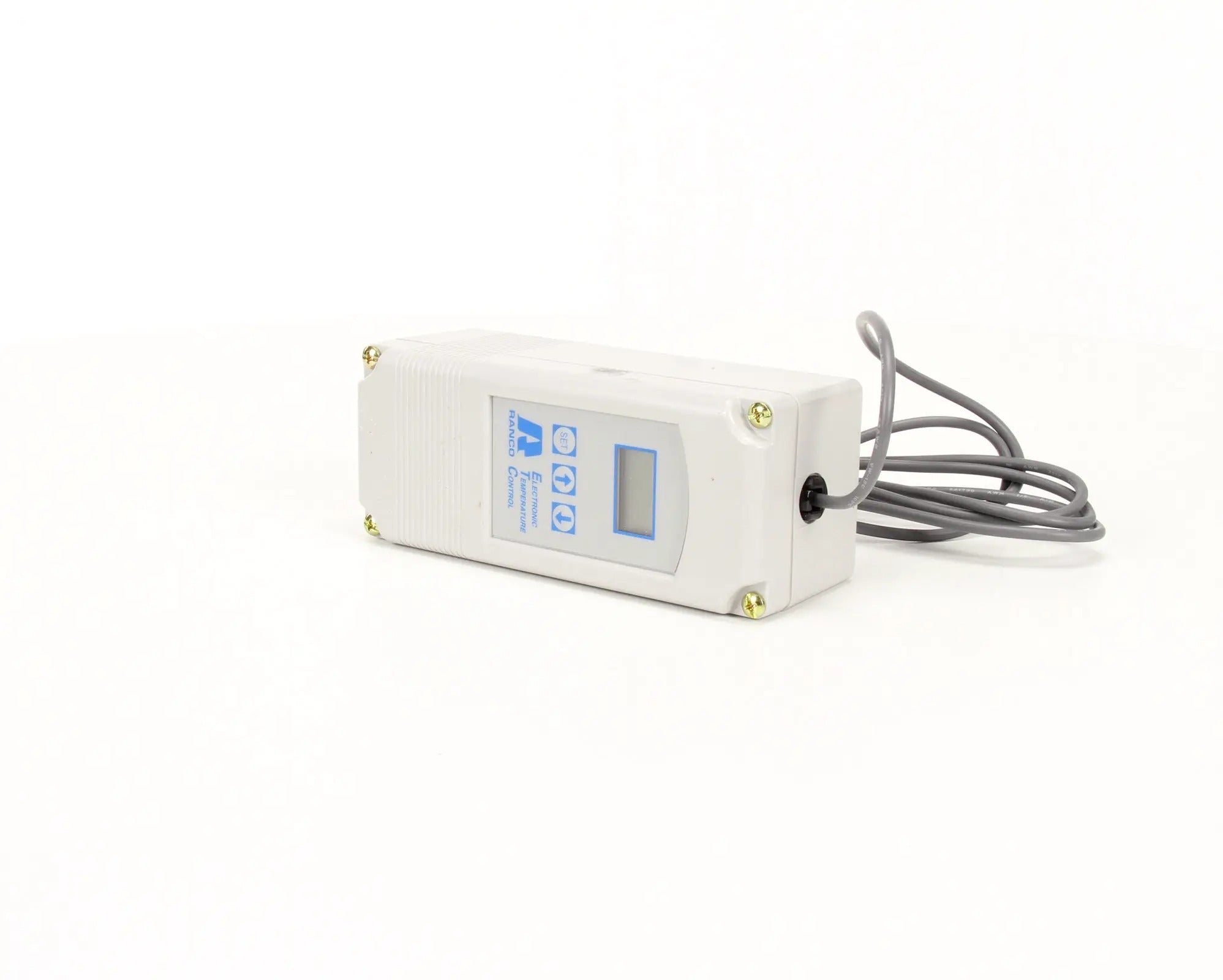

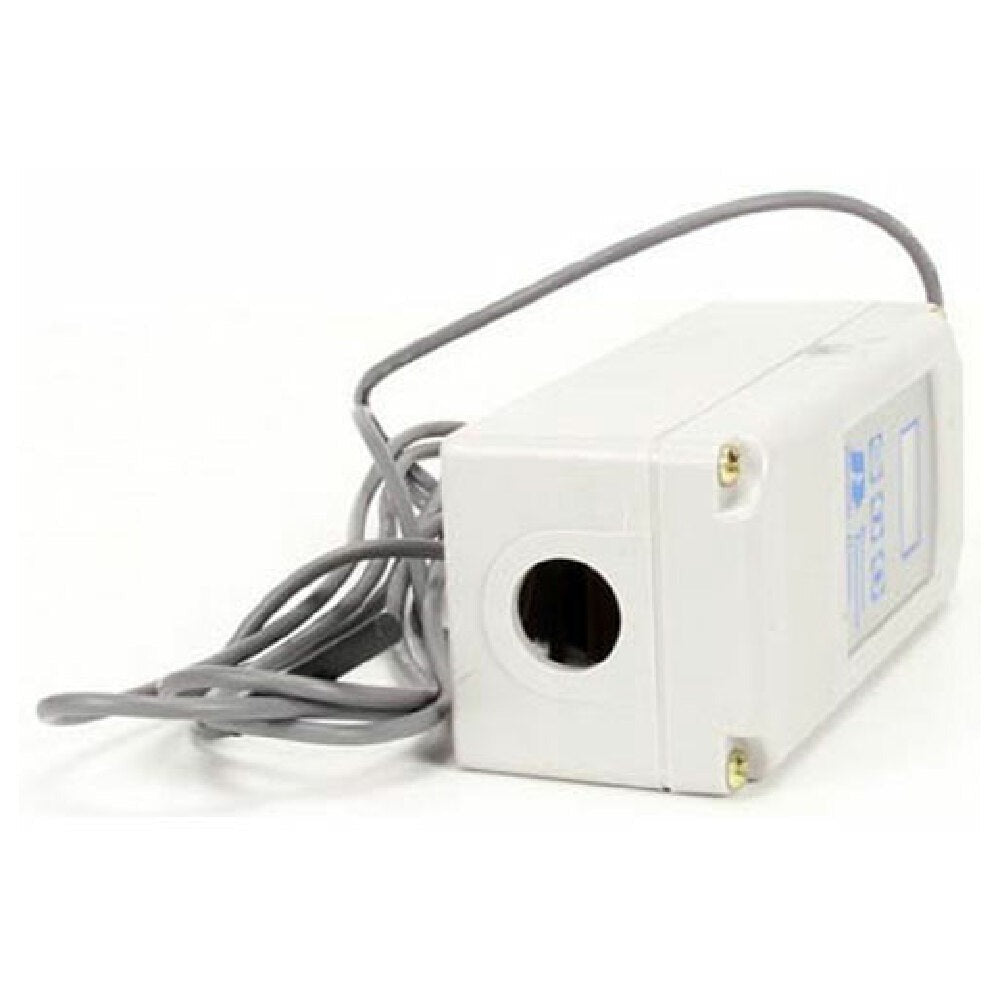

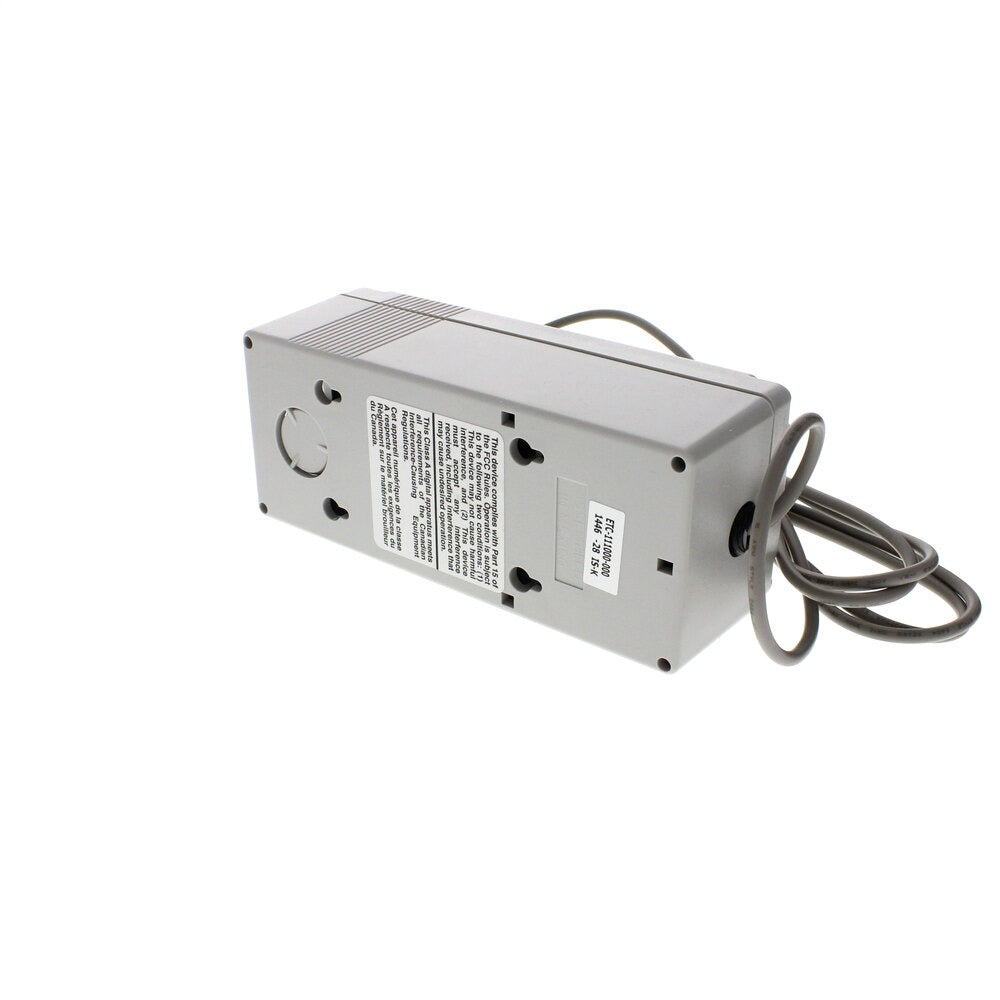

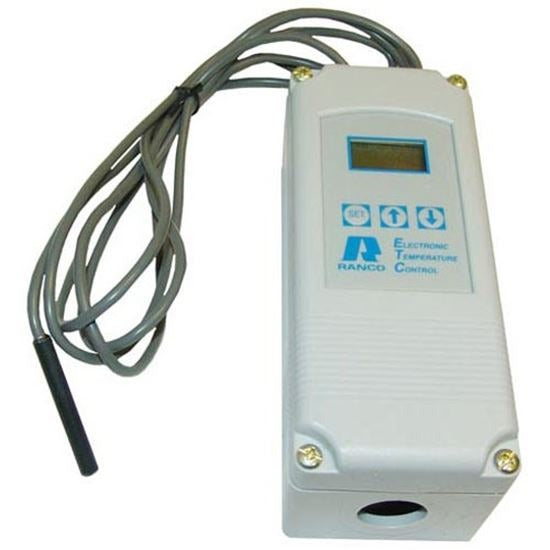

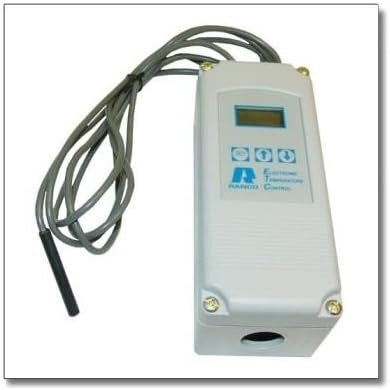

Atlas 22-1397 Temperature Control Electric Multi-Voltage (3.5 x 2.7 x 9.0 in) 46-1427

Product Description

Atlas 22-1397 is an electronic temperature control (ETC) for commercial refrigeration that provides selectable heating and cooling modes with multi-voltage input. It supports one- and two-stage operation and an adjustable differential from 1°F to 30°F across an operating range of -30°F to 220°F. Models include NEMA 4 enclosure options for application flexibility in walk-in and reach-in refrigerators, milk coolers, and display cases.

• Temperature range -30°F to 220°F with differential adjustment from 1°F to 30°F.
• Multi-voltage input (24 VAC and 120/208/240 VAC) with one- and two-stage capability.
• Dimensions 3.5 x 2.7 x 9.0 in and weight 1.00 lb; models available with NEMA 4 enclosure.

Product Highlights

Electronic temperature control for commercial refrigeration with -30°F to 220°F range, selectable heating/cooling, multi-voltage and one- or two-stage capability.

Product Information

Standard Information

• Brand: ATLAS
• Manufacturer Part Number: 22-1397
• Country of Origin: Mexico
