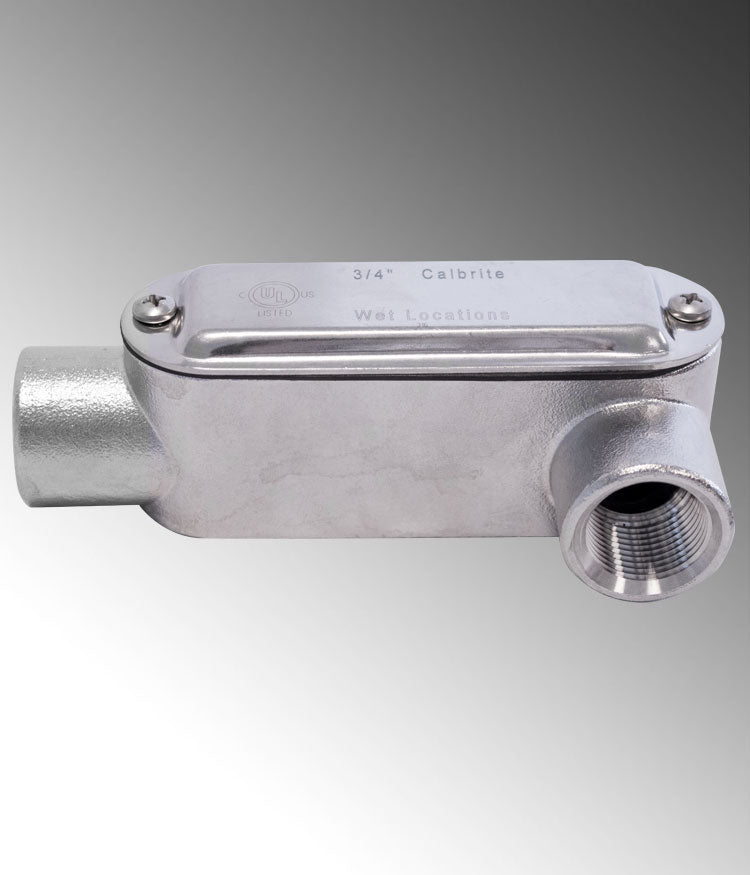

Atkore S60700LL00 CAL PIPE 3/4 316SS LL CONDULET

Product Description

The Atkore S60700LL00 is a Conduit Body of type LL. It features a three-quarter inch hub and a total of two hubs. The product has a capacity of seven cubic inches and includes a cover and gasket set. This product is made from 316L stainless steel, which is polished for enhanced corrosion resistance.

• Constructed from type 316L stainless steel
• Designed for easy installation
• Flat back for additional wiring capacity

Product Highlights

This product serves as a pull outlet for conductors being installed. It also allows for making splices and taps in conductors, connecting conduit sections, and providing access for maintenance and future changes.

Product Information

Standard Information

• Manufacturer: Atkore
• MPN: S60700LL00

Technical Specifications

• Application: Pull outlets for conductors, splices, and access
• Color: Silver
• Connection Type: NPT
• Dimensions: 5.59 in L x 2.3 in W x 2.32 in H
• Finish: #4 Polished
• Hub Size: 3/4 in
• Includes: Cover and Gasket Set
• Material: 316L Stainless Steel
• Number of Hubs: 2
• Standards/Approvals: UL 514A File No. E307133 | cULus Listed
• Type: Type LL
