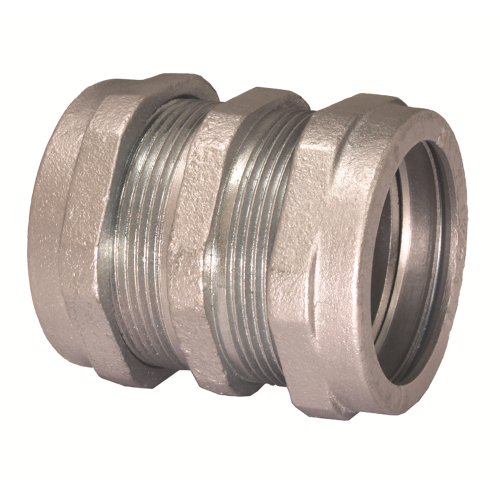

Atkore RCK75KON 3/4 inches threadless rigid compression coupling

Product Description

The ATKORE RCK75KON is a 3/4" threadless rigid compression coupling designed for electrical conduit applications. Constructed from malleable iron with a zinc-plated finish, this coupling provides a secure connection for threadless rigid and IMC conduits. It features a neoprene gasket to ensure a concrete-tight seal and offers corrosion resistance, making it suitable for various installations.

• Designed for use where conduit runs are closely spaced.
• Neoprene gasket provides a concrete tight seal.
• Zinc plated finish prevents corrosion.

Product Highlights

Threadless rigid compression coupling with concrete tight neoprene seals and corrosion resistance.

Product Information

Standard Information

• Brand: ATKORE
• Manufacturer Part Number: RCK75KON
• Country of Origin: China

Technical Specifications

• Trade Size: 3/4
• Part Width (in): 0.5
• Part Height (in): 1.63
• Part Length (in): 1.88
• Fitting Type: Coupling
• Material Type: Malleable Iron
• Surface Finish: Zinc Plated
• Connection Type: Compression
• Type: Coupling;Rigid
• Series: RCK
• Suitable For Use With: Threadless Rigid/IMC Conduit
• Standards: UL 514B|cULus File No. E207875|Federal Specification W-F-408E|NEMA FB-1
