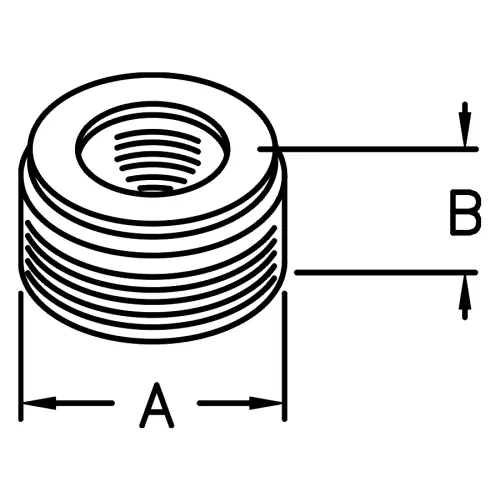

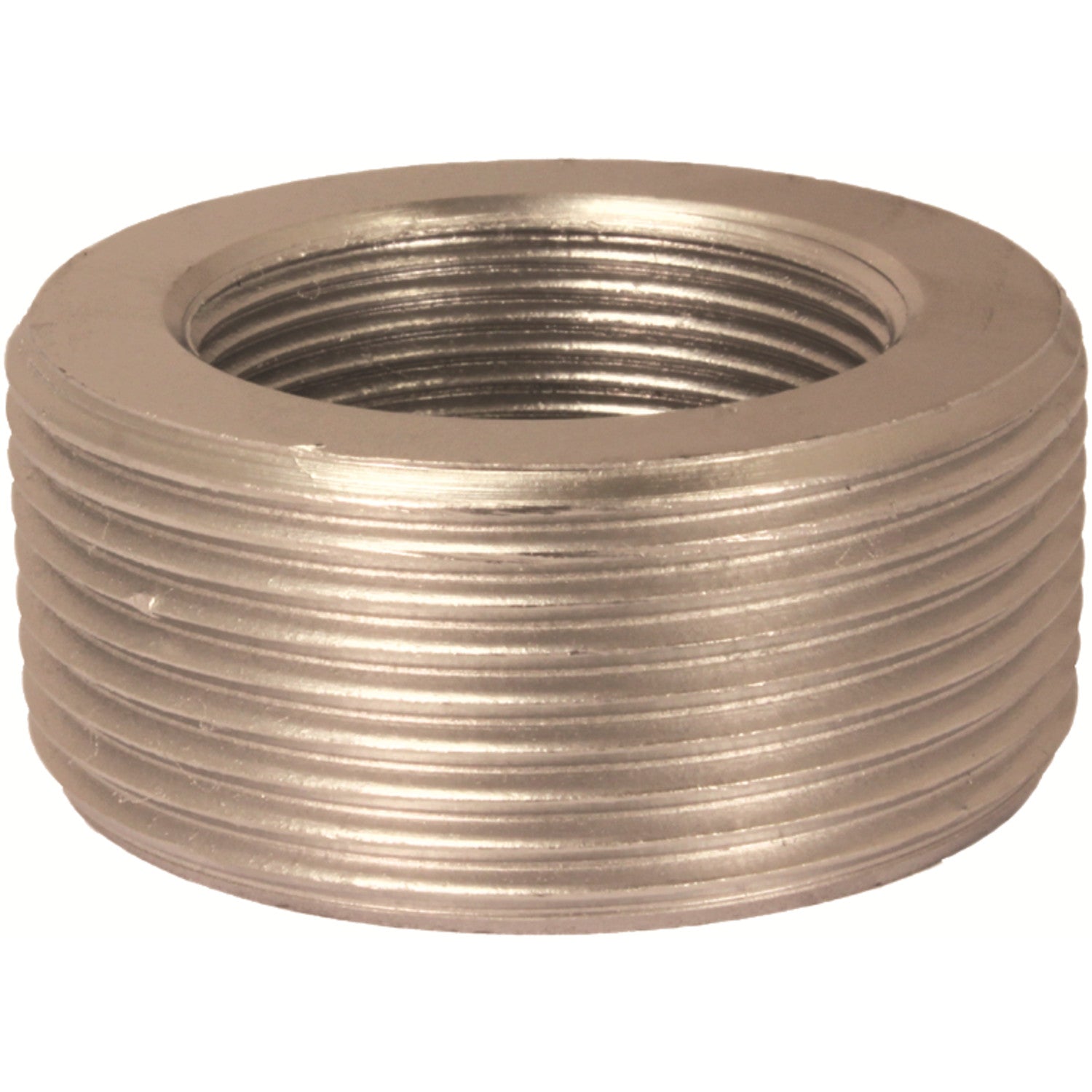

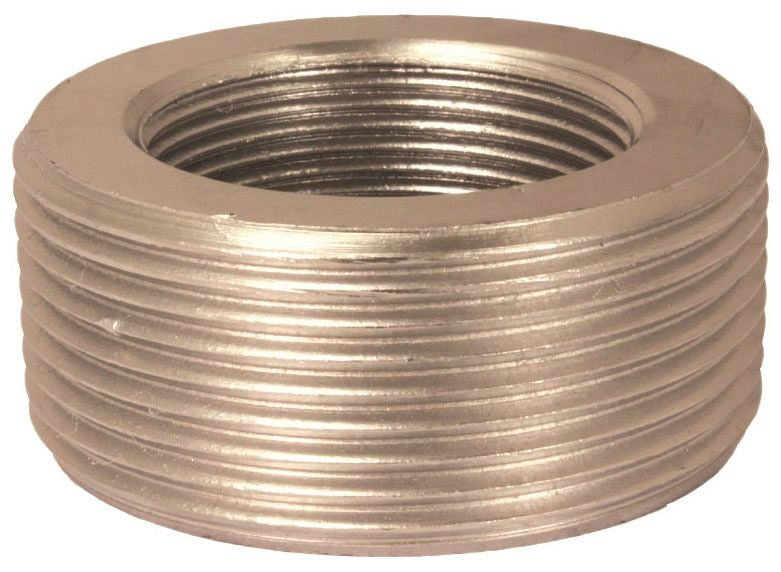

Atkore RB9KON Reducing Bushings 1-1/2 inches (38.10 mm) X 1 inches (25.40 mm)

Product Description

The ATKORE RB9KON Reducing Bushing is an electrogalvanized steel fitting designed for conduit systems. This threaded conduit bushing offers 25% higher tensile strength compared to common die-cast zinc bushings, ensuring durability. It resists creep caused by temperature or stress, which can extend its useful life in electrical installations. This bushing with lug is suitable for rigid/IMC conduit applications.

• Plastic coating will not chip, crack, swell, or shrink
• Resistant to corrosion, chemicals, and extreme temperatures
• Eliminates the use of a locknut

Product Highlights

Superior tensile strength, corrosion resistance, and eliminates the need for a locknut.

Product Information

Standard Information

• Brand: ATKORE
• Manufacturer Part Number: RB9KON
• Country of Origin: China

Technical Specifications

• Small End Trade Size: 1 Inch
• Large End Trade Size: 1-1/2 Inch
• Part Width: 1.88 in
• Part Height: 0.75 in
• Part Length: 1.88 in
• Fitting Type: Bushing with lug
• Material: Zinc Plated Steel
• Surface Finish: Electrogalvanized
• Connection Type: Threaded
• Used On: Rigid/Imc Conduit
• Sub-Category: Rigid/EMT Conduit Reducer
• Special Features: Zinc Plated, Internal and External Threads
• Approval: UL (Canada and Us), UL 514B
• Applicable Standard: NEMA FB-1, Federal Specification W-F-408E
