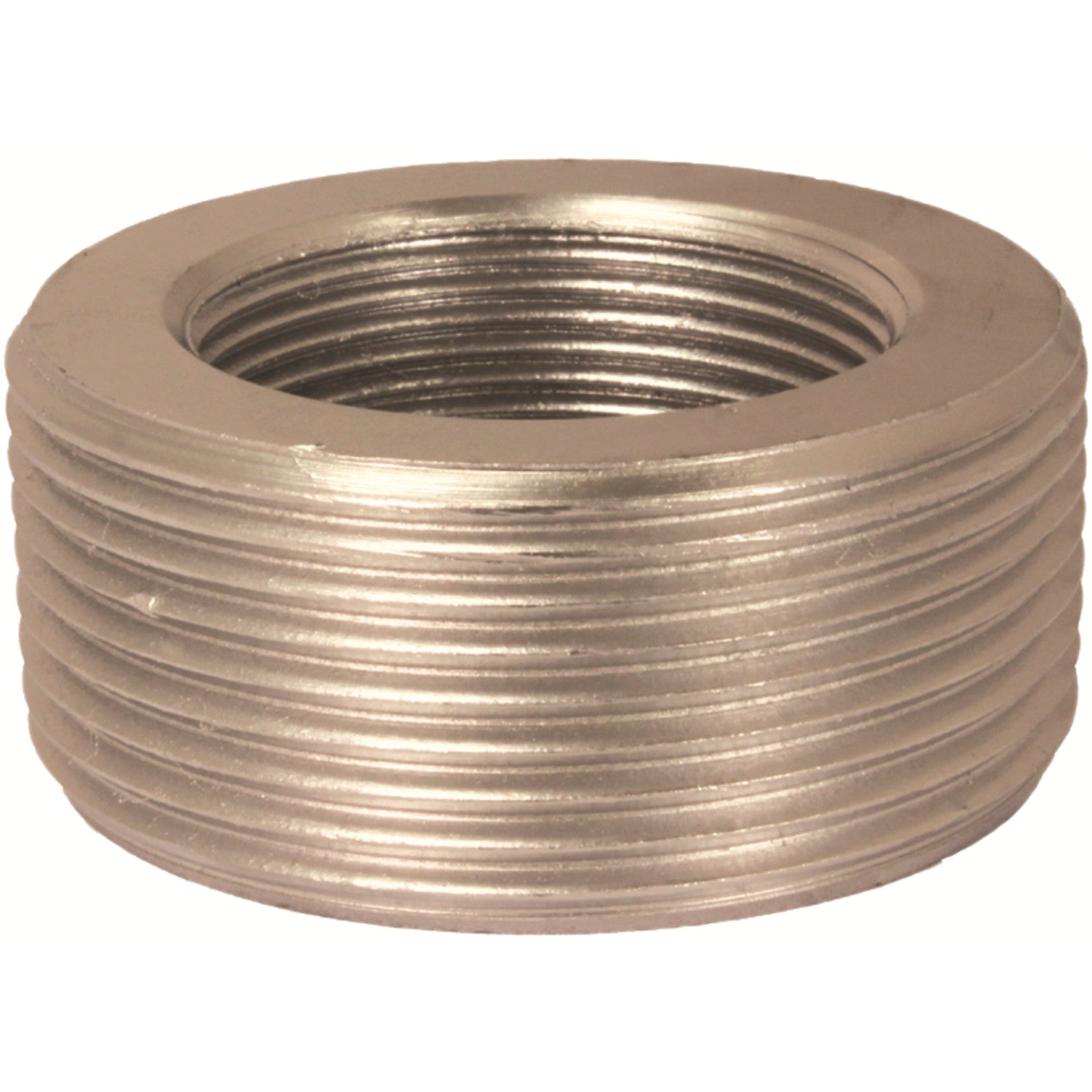

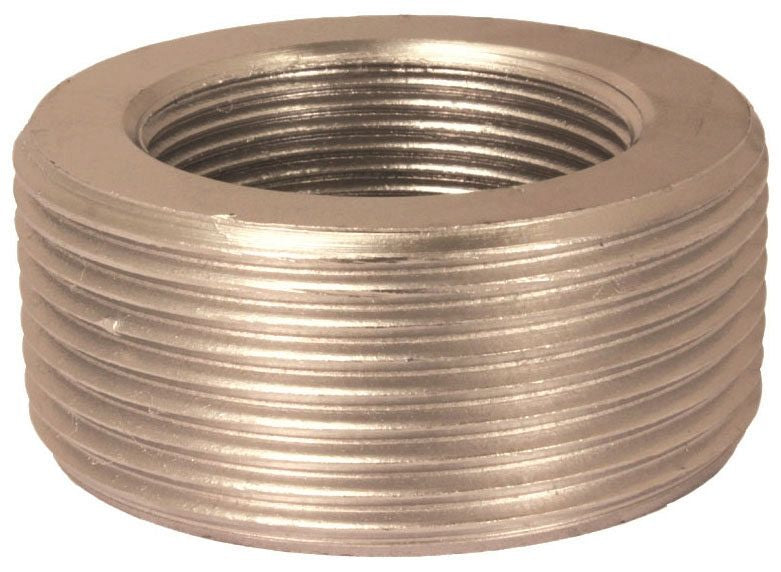

Atkore RB3KON Reducing Bushings 1 inches x 3/4 inches

Product Description

The ATKORE RB3KON is a threaded reducing bushing designed for safely reducing conduit size. Made from steel with an electrogalvanized surface finish, it offers higher tensile strength than zinc die-cast alternatives. This bushing resists corrosion, chemicals, and extreme temperatures, making it suitable for rigid and IMC conduit applications.

• Offers higher tensile strength compared to zinc die cast alternatives
• Resists corrosion, chemicals and temperature extremes
• Eliminates the use of the locknut

Product Highlights

Corrosion-resistant steel bushing for rigid/IMC conduit, providing superior strength and eliminating the need for a locknut.

Product Information

Standard Information

• Brand: ATKORE
• Manufacturer Part Number: RB3KON

Technical Specifications

• Catalog Number: RB3KON

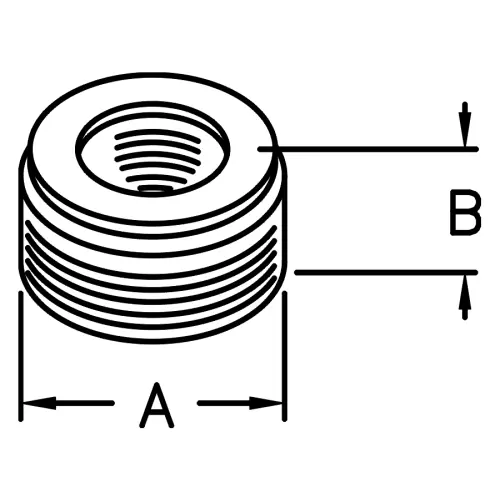

• Part Width: 1.31 in
• Part Height: 0.625 in
• Part Length: 1.31 in
• Fitting Type: Bushing
• Material: Steel
• Surface Finish: Electrogalvanized
• Type: Threaded
• Used On: Rigid/IMC Conduit
• Small End Trade Size: 3/4 Inch
• Large End Trade Size: 1 Inch
• Approval: UL (Canada and US), UL 514B
• Sub Brand: Electrical Fittings
• Applicable Standard: NEMA FB-1, Federal Specification W-F-408E
• Sub-Category: Rigid/EMT Conduit Reducer
