Atkore PV1000LL38 Calbond LL38 1 Form 8 LL Body PVC Coated

Product Description

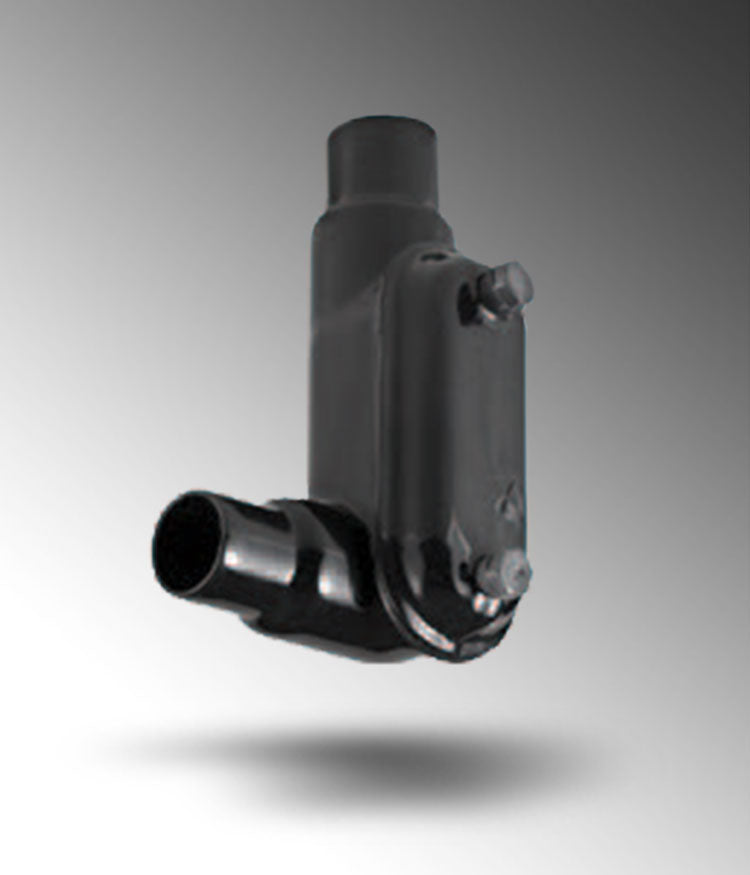

Atkore PV1000LL38 is a Type LL conduit body designed for versatility and durability in electrical installations. This conduit body features one hub and two openings, allowing for easy splices and taps in electrical conductors.

• Constructed with galvanized steel and PVC coating for corrosion resistance.
• Rated for use in NEMA 4X conditions.
• Dimensions measure seven point zero four inches long by two point seven nine inches wide by one point nine two inches high.

Product Highlights

This conduit body is ideal for branch conduit runs and provides access for maintenance and future system changes.

Product Information

Standard Information

• Manufacturer: Atkore
• Product Name: PV1000LL38 Calbond LL38 1 Form 8 LL Body PVC Coated

Technical Specifications

• Type: Type LL
• Color: Black
• Material: Steel
• Finish: Galvanized/PVC Coated
• Hub Size: 1 in
• Number of Hubs: 2
• Dimensions: 7.04 in L x 2.79 in W x 1.92 in H
• Enclosure: NEMA 4X
• Application: For conductors being installed, provides openings for making splices and taps in conductors.
• Standards/Approvals: ARRA Compliant, UL 514B, CSA C22.2 No. 18
