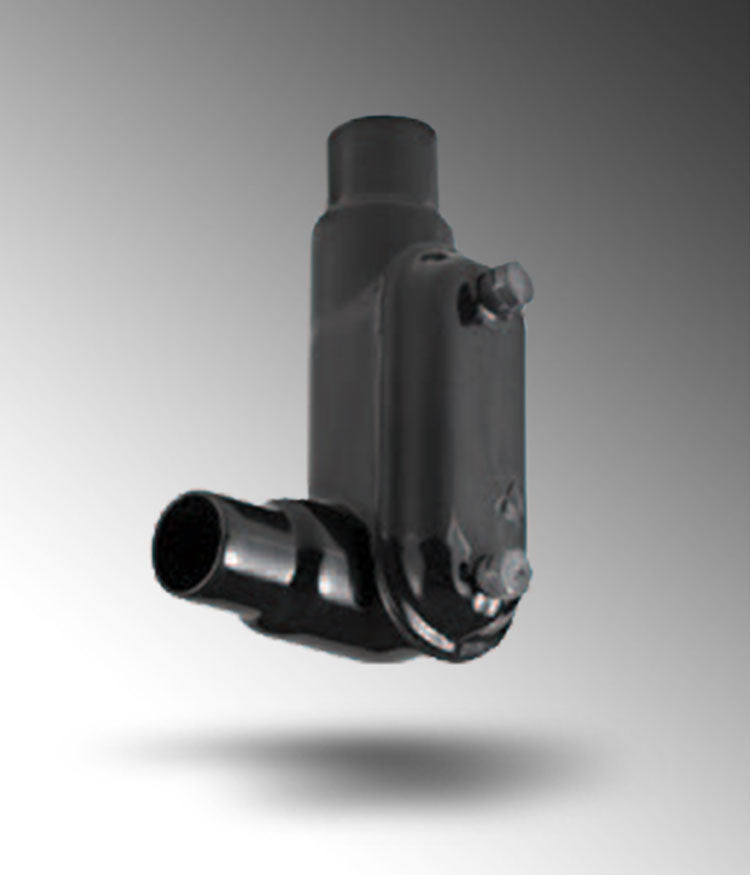

Atkore PV0700LL28 Calbond LL28 3/4 Form 8 LL Body PVC Coated

Product Description

Atkore PV0700LL28 is a Type LL conduit body made from steel and coated with PVC. It is designed for use in electrical conduit systems. This product features a three-fourths inch hub and is built to withstand corrosion.

• Made of galvanized steel with a PVC coating
• NEMA 4X enclosure offers protection against dust and water
• Dimensions are five point ninety-eight inches long, two point forty-eight inches wide, and one point sixty-seven inches high

Product Highlights

The Atkore conduit body is ideal for installations requiring splices, taps, or changes in the direction of conductors.

Product Information

Standard Information

• Manufacturer: Atkore
• UPC: 84765607197

Technical Specifications

• Type: LL
• Color: Black
• Hub Size: three-fourths inch
• Number of Hubs: 2
• Material: Steel
• Dimensions: five point ninety-eight inches by two point forty-eight inches by one point sixty-seven inches
• Enclosure: NEMA 4X
• Finish: Galvanized/PVC Coated
• Wall Thickness: one point thirteen inches
• Standards/Approvals: ARRA Compliant, UL 514B, CSA C22.2 No. 18
• Application: For conductors being installed, provide openings for splices and taps, connect conduit sections, and conduct maintenance
