Atkore PV0700CP00 Straight Thread Conduit Coupling 3/4 In

Product Description

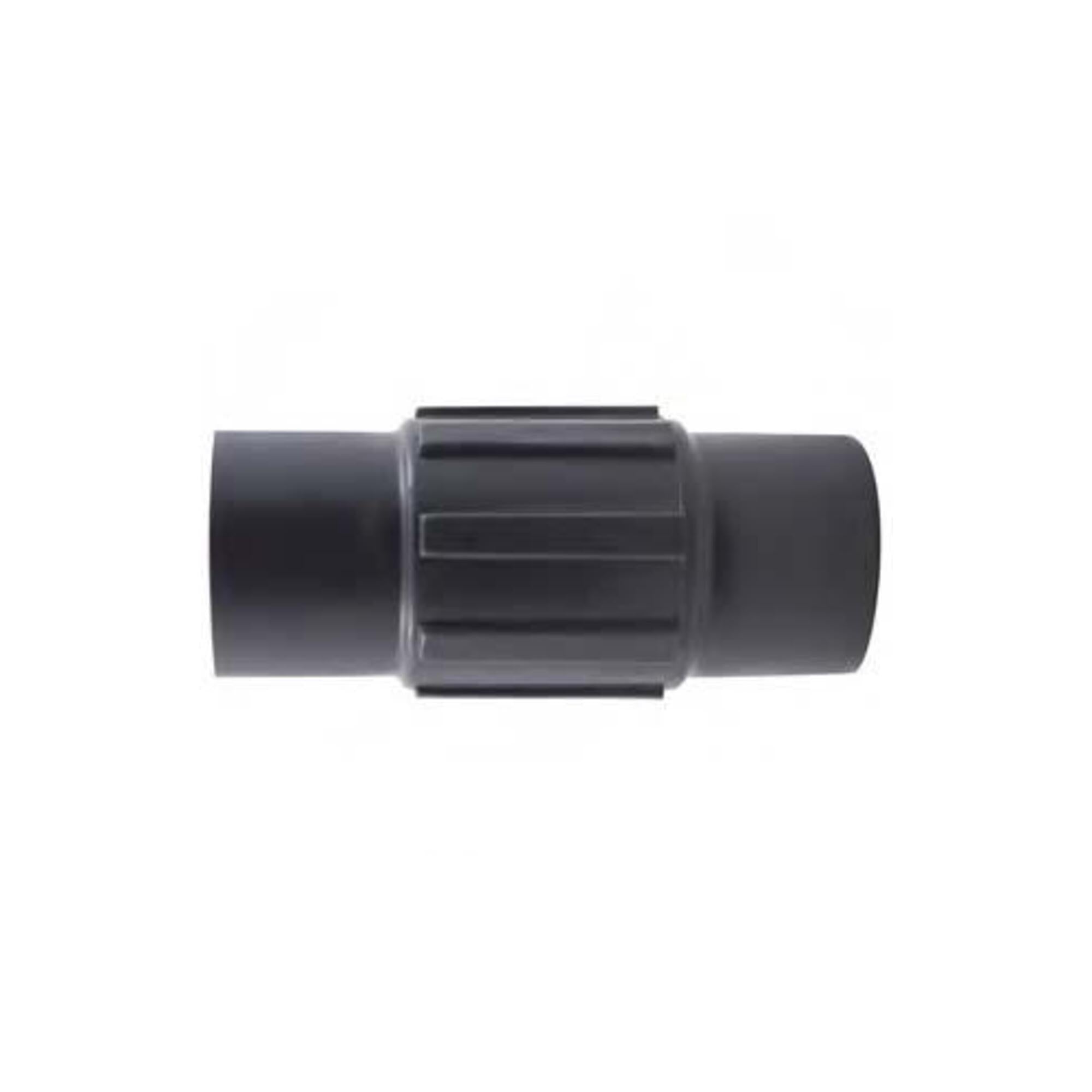

The ATKORE PV0700CP00 is a straight thread conduit coupling designed for rigid conduits. This 3/4 inch steel coupling features a galvanized and PVC coated finish, providing enhanced corrosion protection. It is supplied with PVC sleeves on both ends to ensure system integrity and is suitable for various electrical installations requiring robust conduit connections.

• Exterior PVC coating thickness is a minimum 0.04 in
• Interior urethane coating thickness is a minimum 0.002 in
• Sealing sleeves on both ends

Product Highlights

Provides superior corrosion protection and a secure, straight-threaded connection for rigid conduits.

Product Information

Standard Information

• Brand: ATKORE
• Manufacturer Part Number: PV0700CP00
• Country of Origin: United States

Technical Specifications

• Application: For use with stainless steel rigid conduit and to connect threaded stainless conduit, nipples and other threaded fittings
• Color: Black
• Finish: Galvanized/PVC Coated
• Material: Steel
• Trade Size: 3/4 in
• Standards/Approvals: ARRA Compliant, UL File #DYJC.E230584, UL Listed, UL 6A E230584 C80.5, cUL 6A
• Suitable For Use With: Rigid Conduits
• Type: Straight Thread
• Outside Diameter: 1.050 in
• Fitting Type: Coupling
• Max Temperature Rating Dry: 200 F
• ECCN: EAR99
• UNSPSC: 39131707
• Interior Coating: Urethane
• Conduit Type: Rigid/IMC
