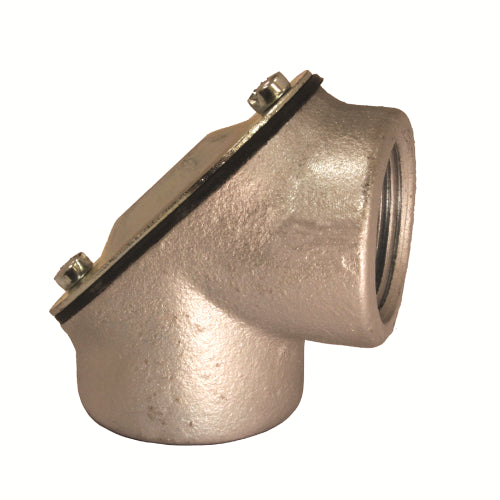

Atkore PEF-125KON 90 degree 1-1/4 inches (31.75 mm) female to female pull elbow

Product Description

The ATKORE PEF-125KON is a 90-degree pull elbow designed for connecting rigid or IMC conduits. This malleable iron fitting, with a zinc-plated surface finish, facilitates a 90-degree bend in electrical conduit systems. It has a trade size of 1-1/4 inches and includes a cover and a neoprene gasket, ensuring a secure and protected connection. The fitting measures 3.625 inches in width, 2.04 inches in height, and 3.63 inches in length.

• Connects rigid or IMC conduit to rigid or IMC conduit to form a 90° bend
• Cover and gasket included
• Die-cast zinc to prevent corrosion

Product Highlights

Robust elbows for connecting rigid conduits, cover and gasket included.

Product Information

Standard Information

• Brand: ATKORE
• Manufacturer Part Number: PEF-125KON

Technical Specifications

• Catalog Number: PEF-125KON
• Trade Size: 1-1/4
• Width: 3.625 in
• Height: 2.04 in
• Length: 3.63 in
• Fitting Type: Pull Elbow
• Material: Malleable Iron
• Surface Finish: Zinc Plated
