Atkore P2785-EG Unistrut Beam Clamp 1000 lb Load 3 in W x 1/4 in THK Flange

Product Description

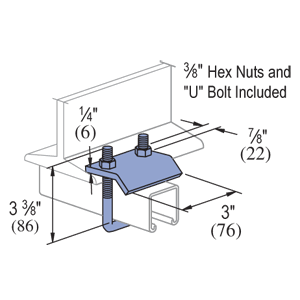

Atkore P2785-EG is a Unistrut Beam Clamp designed for secure beam applications. This clamp supports a load of up to 1000 lb and is suitable for beams with a flange thickness of one-quarter inch and a width of three inches.

• Load Capacity: 1000 lb
• Material: 33 Stainless Steel
• Finish: Electro-Galvanized

Product Highlights

Ideal for various metal framing systems, this clamp is effective for supporting beams and channels securely.

Product Information

Standard Information

• Manufacturer: Atkore
• Manufacturer Part Number: P2785-EG

Technical Specifications

• Dimensions: 3-3/8 inches
• Flange Thickness: 1/4 inch
• Flange Width: 3 inches
• Mounting Type: Bottom Flange
• Specifications: 3/8-16, 3-3/8 inches H Bolt, 19 ft/lb Torque
• Suitable For Use With: Beams Up to 3/4 inch Flange, P1101, P1001, P2001, P3001, P5000 and P5500 Series Channel
• Standards/Approvals: A575/A576/A635/A36/A1011|ASTM B633 Type III SC1
