Atkore MSC300KON 3-inch clamp connector

Product Description

The ATKORE MSC300KON is a 3-inch clamp connector designed for secure electrical installations. Constructed from malleable iron with a zinc plated finish, this connector provides corrosion resistance and is suitable for armored cables, flexible metallic conduits, interlocked metallic sheathed cables, and HCF cables. It ensures a reliable connection for various wiring applications.

• To be used with armored cables, flexible metallic conduits, interlocked metallic sheathed cables, and HCF cables
• Supplied with steel locknuts for secure installation
• Features zinc plating to prevent corrosion and enhance durability

Product Highlights

Corrosion-resistant malleable iron clamp connector for armored cable and conduit, supplied with steel locknuts.

Product Information

Standard Information

• Brand: ATKORE
• Manufacturer Part Number: MSC300KON
• Country of Origin: CN

Technical Specifications

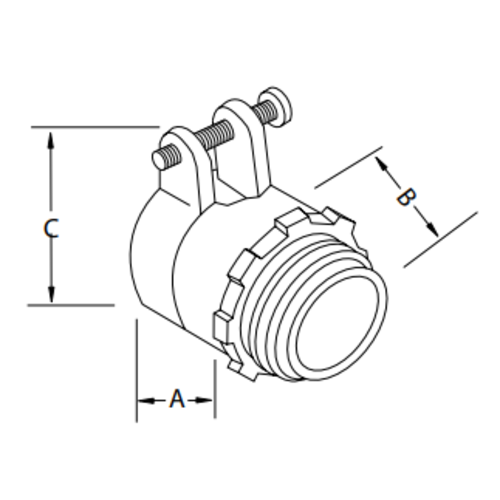

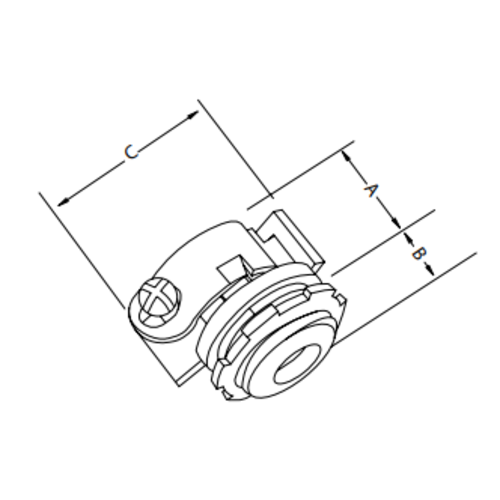

• Trade Size: 3 inch
• Part Width: 1.063 in
• Part Height: 3.88 in
• Part Length: 2.13 in
• Fitting Type: Connector
• Material: Malleable Iron
• Finish: Zinc Plated
• Manufacturer: Allied Tube & Conduit
• Cable Type: AC/MC/HCF
• Connection Type: Male NPSM
• Knockout Size: 3 in
• Type: Straight Standard
• Standards: eccn: EAR99|UL 514B|cULus File No. E207875|CSA 243470|Federal Specification W-F-406E|NEMA FB-1
• Brand: Atkore
