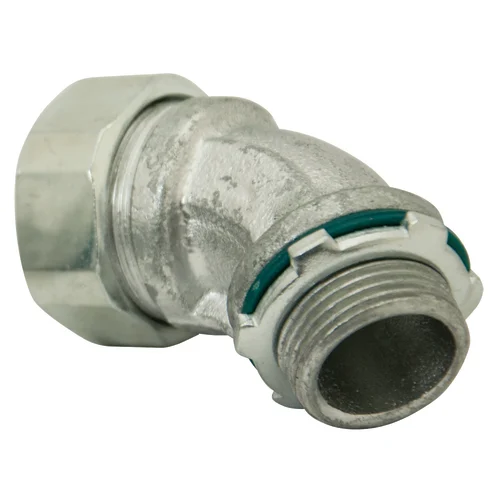

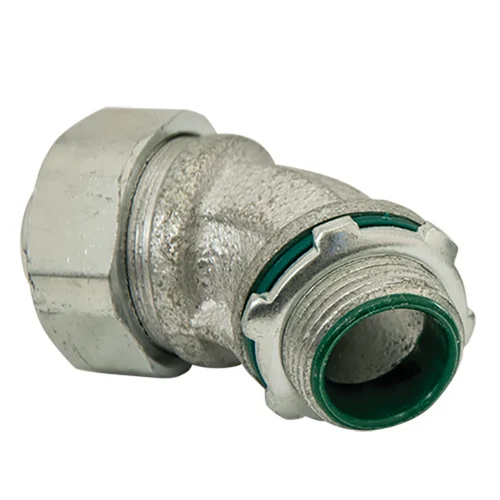

Atkore LTQ7545KON Liquidtight Screw-in Connector 3/4 inch 45 degree

Product Description

The ATKORE LTQ7545KON is a 3/4 inch (19.05 mm) liquidtight screw-in 45 degree connector designed for Allied Tube & Conduit conduits. Constructed from zinc plated malleable iron, this compact fitting ensures watertight, raintight, and oiltight connections. Its 45-degree angle provides directional flexibility, while the screw-on design effectively secures conduits. This connector is suitable for various applications requiring robust and corrosion-resistant electrical connections.

• No disassembly required for installation
• Long ferrule prevents pull-out and conduit blow-out in tight bends
• Liquidtight/Raintight/Watertight

Product Highlights

Easy-to-install, compact 45-degree connector for liquidtight, raintight, and oiltight conduit applications.

Product Information

Standard Information

• Brand: ATKORE
• Manufacturer Part Number: LTQ7545KON

Technical Specifications

• Catalog Number: LTQ7545KON
• Catalog Description: 3/4" (19.05 mm) screw-in liquidtight 45 degree
• Trade Size: 3/4 inch
• Fitting Type: Connector
• Material: Malleable Iron
• Finish: Zinc Plated
• Brand (Internal): Allied Tube & Conduit
• Application: Liquidtight, Raintight, Oiltight
• Manufacturer: ATKORE - ALLIED TUBE & CONDUIT FITTINGS
• GTIN: 00842136106306
• UPC: 842136106306
• Mounting Type: Screw On
