Atkore LT40090-ICKON liquid-tight 4 inch (101.60 mm) 90 degrees insulated throat

Product Description

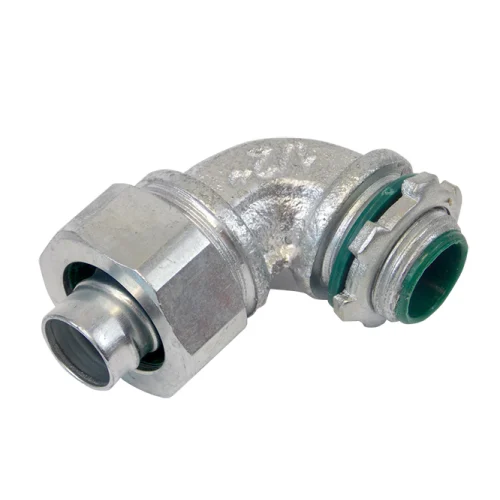

The ATKORE LT40090-ICKON is a 4-inch (101.60 mm) 90-degree liquid-tight connector designed for secure conduit installations. Constructed from zinc-plated malleable iron, this fitting provides liquid-tight, raintight, oiltight, and concrete tight sealing. It features an insulated throat to protect conductors and maintain system integrity, making it suitable for various demanding electrical applications. Its compact design and long ferrule prevent pull-out and bursting of conduits.

• Long ferrule design prevents conduit pull-out and bursting in tight bends.
• Provides liquid-tight, raintight, oiltight, and concrete tight sealing.
• Features a 90-degree bend and insulated throat for conductor protection.

Product Highlights

Durable zinc-plated malleable iron connector with insulated throat for secure, protected conduit installations in wet and oily environments.

Product Information

Standard Information

• Brand: ATKORE
• Manufacturer Part Number: LT40090-ICKON

Technical Specifications

• Catalog Number: LT40090-ICKON
• Application: Liquidtight, Raintight, Oiltight, Concrete Tight
• Finish: Zinc Plated
• Material: Malleable Iron
• GTIN: 00842136105804
• UPC: 842136105804
• Item Type: Liquidtight
• Special Features: Insulated
• Size: 4 inch (101.60 mm)
• Angle: 90 Degrees
