Atkore BRC-50-1AKON Threaded Conduit Bushing 1/2 in

Product Description

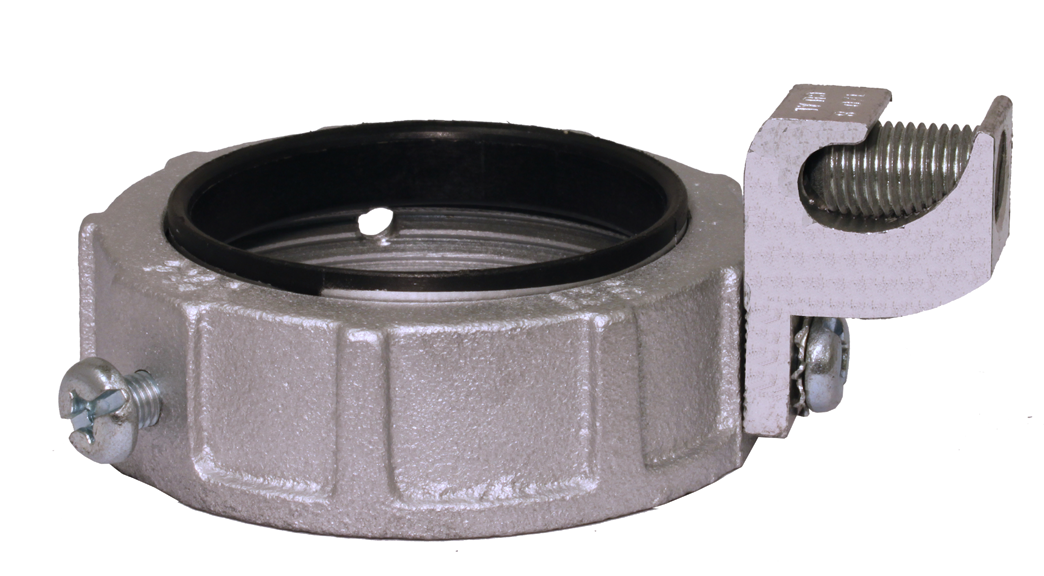

The ATKORE BRC-50-1AKON is a threaded malleable iron conduit bushing designed for use with rigid and IMC conduit in indoor electrical installations. The bushing features a zinc-plated finish and includes an integrated aluminum lug rated for 4 to 14 AWG aluminum or copper conductors, along with one set screw for secure wire termination. Rated to 150 degrees C, it is built for environments where thermal performance and conductor protection at conduit terminations are essential. Licensed electricians install this fitting at the end of a conduit run where the conduit enters a panel, junction box, or enclosure.

This bushing is suited for residential and light commercial electrical work where rigid or IMC conduit terminates indoors. The 1/2 inch trade size fits standard half-inch threaded conduit entries. The aluminum lug supports both aluminum and copper conductors in the 4 to 14 AWG range, making it practical for feeder and branch circuit terminations where code requires a listed grounding or bonding bushing with lug.

Key Features

• Threaded malleable iron construction with zinc-plated finish for durability in indoor use
• Integrated aluminum lug accepts 4 to 14 AWG Al/Cu conductors
• Includes one set screw for secure conductor termination
• 150 degrees C temperature rating for high-heat environments
• Compliant with UL 514B, UL 467, Buy American Act, ARRA, RoHS, and Federal Specification W-F-408E
• cULus listed under File No. E212551

Compatibility

Designed for use with 1/2 inch trade size rigid metal conduit and IMC in indoor applications. Compatible with both aluminum and copper conductors ranging from 4 to 14 AWG at the lug termination point.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code. De-energize and lock out the circuit before working at any panel or enclosure entry point. Thread the bushing fully onto the conduit end before inserting into the knockout, and torque the set screw to secure the conductor using a proper insulated screwdriver or hex key. This fitting is rated for indoor use only.

Technical Specifications

• Trade Size: 1/2 in
• Type: Threaded
• Material: Malleable Iron
• Finish: Zinc Plated
• Temperature Rating: 150 degrees C
• Lug Wire Range: 4 to 14 AWG Al/Cu
• Includes: 1 Set Screw
• Diameter: 1.063 inches
• Height: 0.688 inches
• Application: Rigid/IMC conduit, indoor
• Standards/Approvals: UL 514B, UL 467, cULus File No. E212551, Buy American Act Compliant, ARRA Compliant, RoHS Compliant, Federal Specification W-F-408E

Standard Information

• Brand: ATKORE
• Manufacturer Part Number: BRC-50-1AKON
