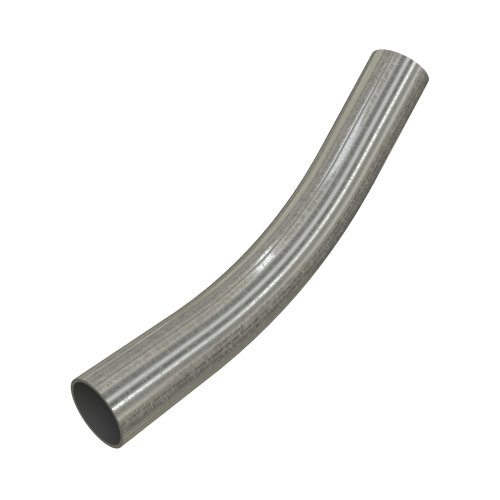

ATKORE 877023 2inch x 45° Elbow Electrical Metallic Tubing EMT Galvanized Steel

Product Description

The ATKORE 877023 is a two-inch by forty-five-degree elbow made for Electrical Metallic Tubing (EMT). It is crafted from hot galvanized steel using a specialized inline Flo-Coat process, ensuring durability and effective exterior protection. The interior is treated with an E-Z Pull coating which provides a smooth surface for easy wire pulling. This elbow offers mechanical protection for electrical conductors while also delivering good EMI shielding.

• Hot galvanized steel with Flo-Coat process for exterior protection
• E-Z Pull interior coating for smooth wire-pulling
• Listed to UL Safety Standard UL 797

Product Highlights

Product Information

Standard Information

• Trade Size: 2 inches
• Fitting Type: Elbow

Technical Specifications

• Outside Diameter: 2.197 inches
• Part Width: 7.35 inches
• Part Height: 2.2 inches
• Part Length: 16 inches
• Gauge: 16
• Wall Thickness: 0.065 inches
• Material Type: Steel
• Material Coating: Galvanized
• Surface Finish: Galvanized
