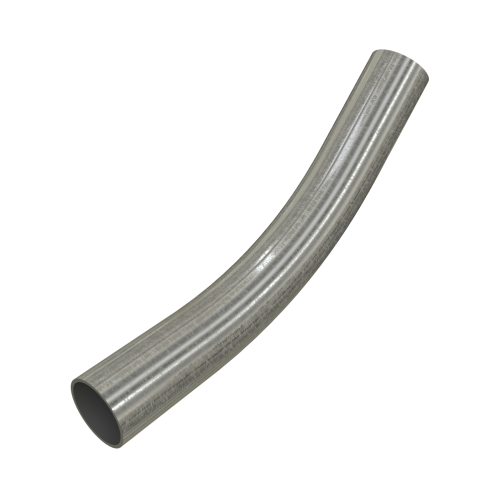

ATKORE 877019 Galvanized Steel Standard Radius EMT Elbows (3/4 inch x 45 degree)

Product Description

The ATKORE 877019 is a galvanized steel standard radius EMT elbow designed for effective wire management. This product features an E-Z Pull interior coating for smooth wire installation and long-lasting durability.

• Manufactured with hot-galvanized steel using a patented inline Flo-Coat process.
• Complies with ANSI C80.3 and Underwriters Laboratories Safety Standard UL 797.
• Provides excellent mechanical protection for conductors with optimal EMI shielding characteristics.

Product Highlights

The ATKORE 877019 EMT elbow is suitable for various electrical applications, ensuring a secure and reliable wire path.

Product Information

Standard Information

• Material Type: Steel
• Material Coating: Galvanized

Technical Specifications

• Trade Size: 3/4
• Outside Diameter: 0.922 inches
• Part Width: 4.59 inches
• Part Height: 0.92 inches
• Part Length: 10.59 inches
• Gauge: 18
• Wall Thickness: 0.049 inches
• Fitting Type: Elbow
• Surface Finish: Galvanized
