Atkore 5133671 Epvc Type Lb Conduit Body 3.5 in

Product Description

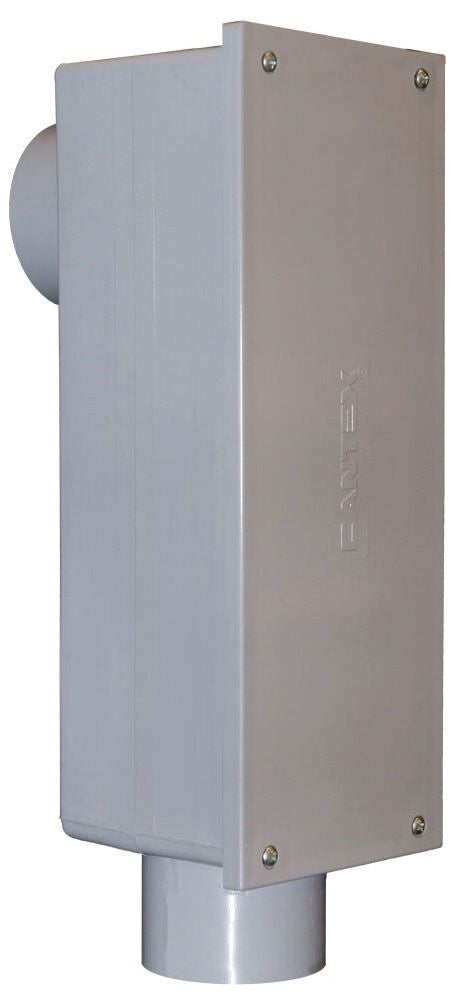

The ATKORE 5133671 is a 3.5-inch EPVC Type LB conduit body designed for use in electrical raceway systems where a 90-degree change in direction is required. The LB configuration enters from the back and exits through the bottom, making it a standard choice for transitioning conduit runs at building entries, wall penetrations, and service entrances. Constructed from EPVC (encapsulated PVC), this conduit body offers corrosion resistance suitable for wet, damp, and corrosive environments. Licensed electricians install this fitting as part of a complete conduit assembly.

This Type LB conduit body is used in residential and commercial electrical installations where rigid or schedule conduit must change direction. It is commonly installed at exterior wall entries, underground-to-above-grade transitions, and service-entrance conduit runs where pull access and directional routing are required. The 3.5-inch trade size accommodates larger conductor fills typical of service and feeder circuits.

Key Features

• Type LB configuration provides a 90-degree directional change with rear entry and bottom exit
• EPVC construction delivers corrosion resistance in wet, damp, and chemically active environments
• 3.5-inch trade size suits large-diameter service and feeder conduit runs
• Removable cover plate allows conductor pulling and future wire access
• Compatible with standard PVC conduit systems and associated fittings

Compatibility

Designed as an OEM-style replacement and standard fit for 3.5-inch EPVC conduit raceway systems used in electrical installations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize all circuits and verify the absence of voltage before opening or servicing any conduit body on an existing run. Use appropriate PVC cement and primer when joining to rigid PVC conduit sections, and ensure the cover gasket is properly seated to maintain the enclosure rating.

Technical Specifications

• Trade Size: 3.5 inches
• Conduit Body Type: LB
• Material: EPVC (Encapsulated PVC)
• UPC: 622454781481

Standard Information

• Brand: ATKORE
• Manufacturer Part Number: 5133671
