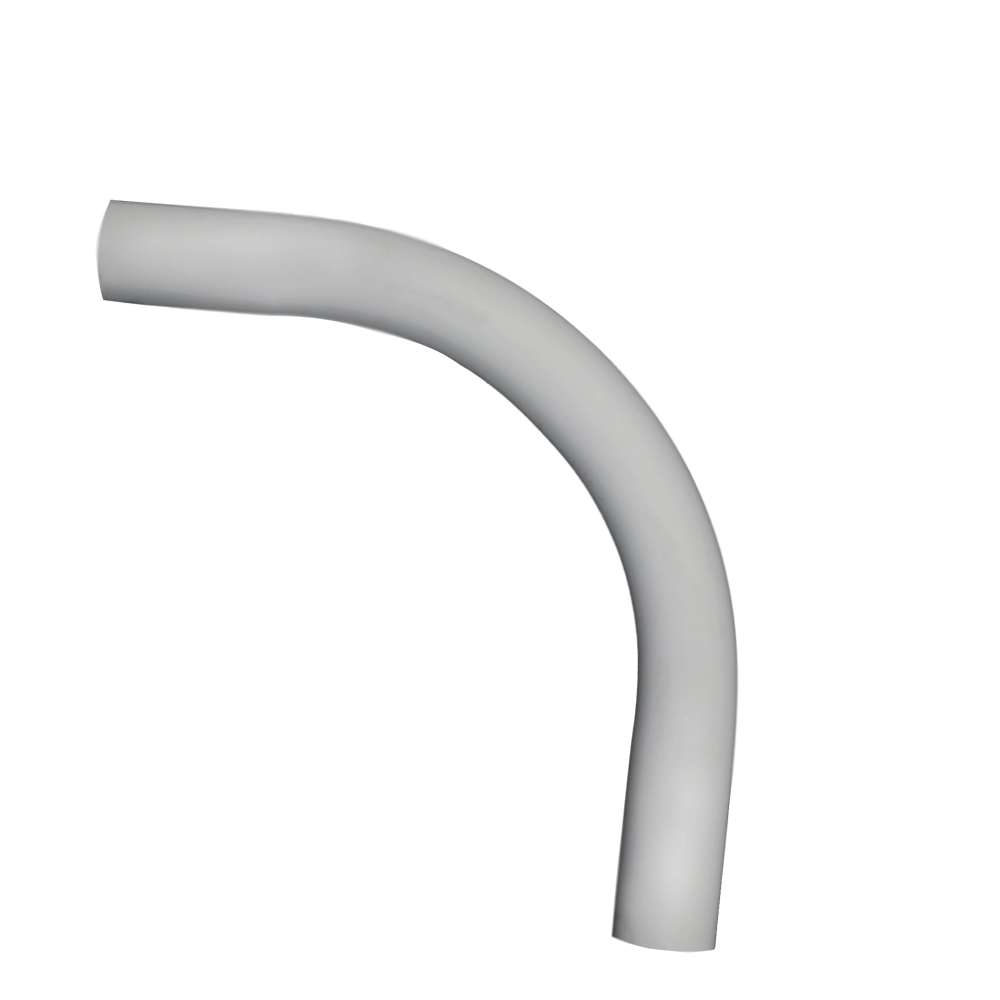

Atkore 5121054 Schedule 80 Epvc 90 Degree Elbow

Product Description

The ATKORE 5121054 is a 3/4-inch Schedule 80 electrical PVC (EPVC) 90-degree elbow designed for rigid conduit systems requiring directional changes at right angles. Schedule 80 wall thickness provides greater mechanical protection compared to Schedule 40, making this fitting suitable for exposed or higher-stress conduit runs. Licensed electricians and electrical contractors install this fitting as part of raceway assemblies in commercial, industrial, and residential applications. The EPVC material offers corrosion resistance and is rated for use in wet and damp locations where ferrous fittings are not appropriate.

This elbow is used in electrical conduit installations where a 90-degree turn is needed in a 3/4-inch conduit run. Typical applications include exposed runs along walls or ceilings, underground conduit systems, and installations in corrosive environments such as wastewater facilities, chemical plants, and coastal installations. Its Schedule 80 rating makes it a preferred choice when conduit may be subject to physical impact or where additional wall strength is specified by the engineer of record.

Key Features

• Schedule 80 wall thickness for increased mechanical strength over Schedule 40
• 90-degree sweep for clean directional transitions in conduit runs
• 3/4-inch trade size fits standard 3/4-inch Schedule 80 EPVC conduit
• EPVC construction resists corrosion, moisture, and many chemicals
• Suitable for wet, damp, and corrosive location installations

Compatibility

Designed as an OEM-style fitting for use with 3/4-inch Schedule 80 electrical PVC conduit systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Solvent-cement the fitting to compatible Schedule 80 EPVC conduit using PVC conduit cement rated for Schedule 80 applications. Ensure power is de-energized before working on any existing raceway. Do not use this fitting with Schedule 40 conduit in applications that specify Schedule 80 throughout.

Technical Specifications

• Trade Size: 3/4 inches
• Schedule: Schedule 80
• Fitting Type: 90 Degree Elbow
• Material: Electrical PVC (EPVC)

Standard Information

• Brand: ATKORE
• Manufacturer Part Number: 5121054
